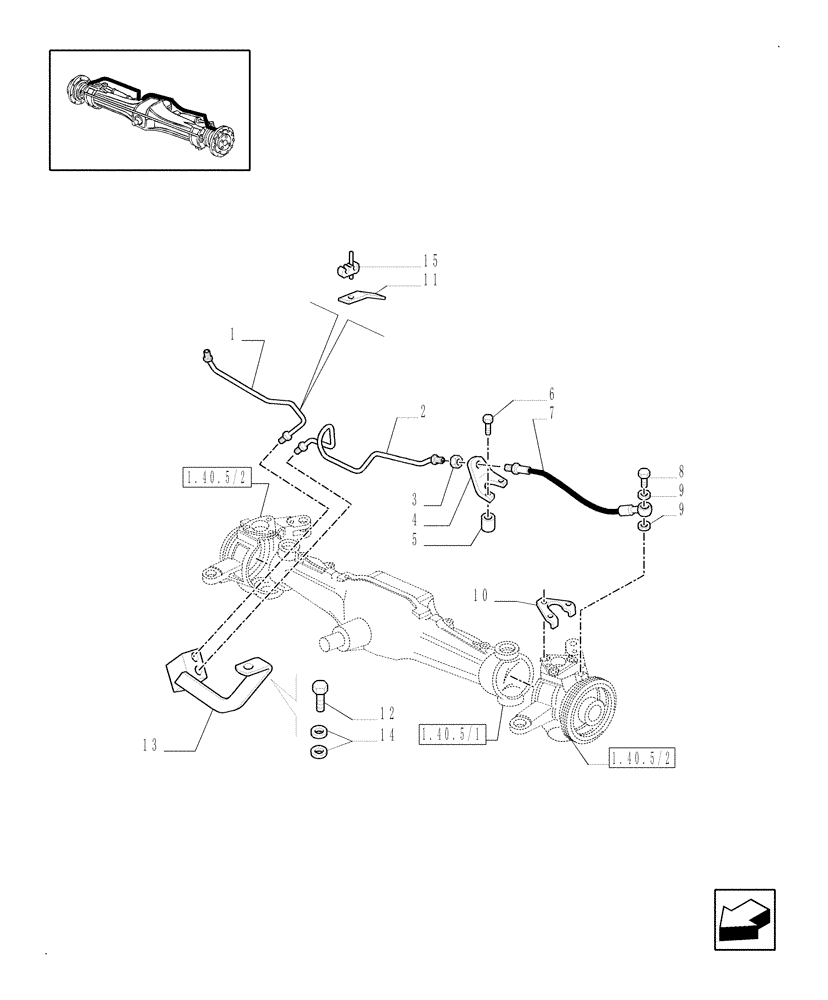

Запчасти Case IH MXM155 (1.40.5/13[04]) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, SPS - BRAKES (04) - FRONT AXLE & STEERING

1

5188458

TUBE

RH

1шт.

2

5188464

BRAKE LINE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

5182969

BRACKET

LH

1шт.

4

5182970

BRACKET

RH

1шт.

5

5182910

SPACER

3шт.

6

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

3шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

9

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

4шт.

10

5183165

BRACKET

2шт.

11

5182997

RETAINER COLLAR

1шт.

12

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

1шт.

13

5188505

BRACKET

1шт.

14

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

15

14575380

CLIP,4.8mm ID

1шт.
