(1.40.5/10B) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - SPS - ARTICULATED HALF-AXLE

Запчасти Case IH MXM155 (1.40.5/10B) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - SPS - ARTICULATED HALF-AXLE (04) - FRONT AXLE & STEERING

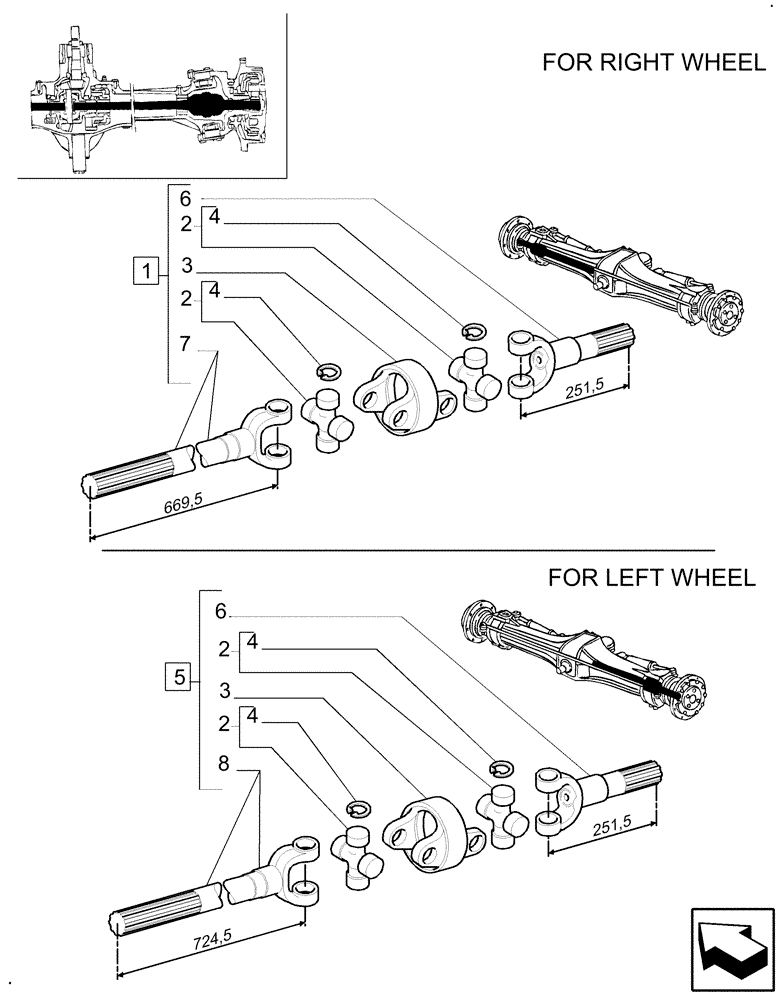

Схема запчастей Case IH MXM155 - (1.40.5/10B) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - SPS - ARTICULATED HALF-AXLE (04) - FRONT AXLE & STEERING
4
6
2
4
3
2
4
for left wheel
6
8
2
5
4
3
2
1
7
for right wheel
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181946

AXLE-SHAFT, ARTICULA

Assy, RH

1шт.

2

5191482

SPIDER

2шт.

3

5191485

YOKE

1шт.

4

5191483

CIRCLIP

8шт.

5

5181947

AXLE-SHAFT, ARTICULA

Assy, LH

1шт.

6

5191488

YOKE

Outer, Short

1шт.

7

5191486

SHAFT

Inner, Long, RH

1шт.

8

5191487

SHAFT

Inner, Long, LH

1шт.
