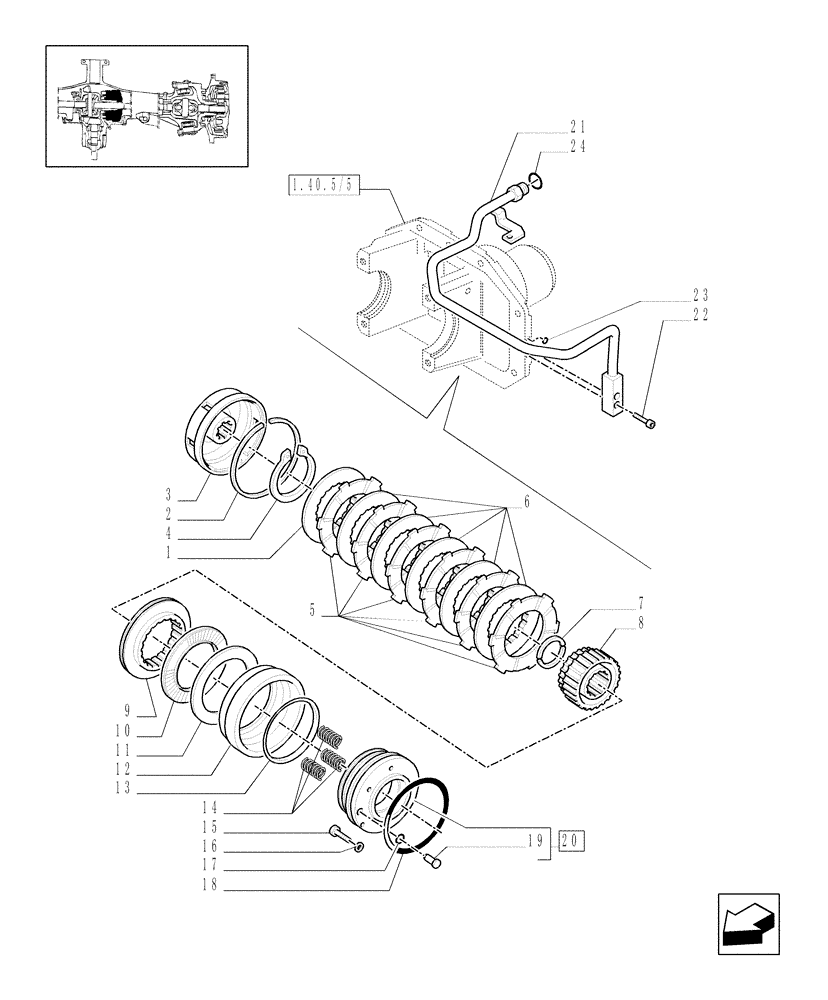

Запчасти Case IH MXM155 (1.40.5/09[02]) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, SPS - HYDRAULIC DIFFERENTIAL LOCK (04) - FRONT AXLE & STEERING

1

5141750

RING GEAR

1шт.

2

5134095

CIRCLIP,200mm ID

D=200

1шт.

3

5134083

HOUSING

1шт.

4

11083176

SNAP RING,M125, Ext

1шт.

5

5198090

CLUTCH PLATE,132mm ID x 194mm OD

6шт.

6

5198088

CLUTCH PLATE,119mm ID x 180mm OD

5шт.

7

5135032

HALF-RING,58mm ID x 70mm OD x 4mm Thk

1шт.

8

5134099

HUB

1шт.

9

5144582

DISC,119mm ID x 180mm OD x 15mm Thk

1шт.

10

5134174

ROLLER BEARING,140mm ID x 180mm OD x 5mm W

1шт.

11

5134175

WASHER,140mm ID x 180mm OD x 1mm Thk

140 x 180 x 1

1шт.

12

5134093

PLUNGER

1шт.

13

5140120

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

2.62 x 145.72

1шт.

14

5120761

SPRING,7.7mm OD x 20.5mm L

3шт.

15

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

5шт.

16

10569374

LOCK WASHER,M8

5шт.

17

14452881

O-RING,7.65mm ID x 1.78" Width

(M7.65 ID x 1.78 Thk)

1шт.

18

5140121

O-RING,0.103" Thk x 6.737" ID, -166, Cl 5, 75 Duro

2.62 x 171.12

1шт.

19

5148467

PIN,6mm OD x 24.5mm L

1шт.

20

5148468

FLANGE

1шт.

21

5188462

TUBE

1шт.

22

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

23

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

(M10.82 ID x 1.78 Thk)

1шт.

24

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.
