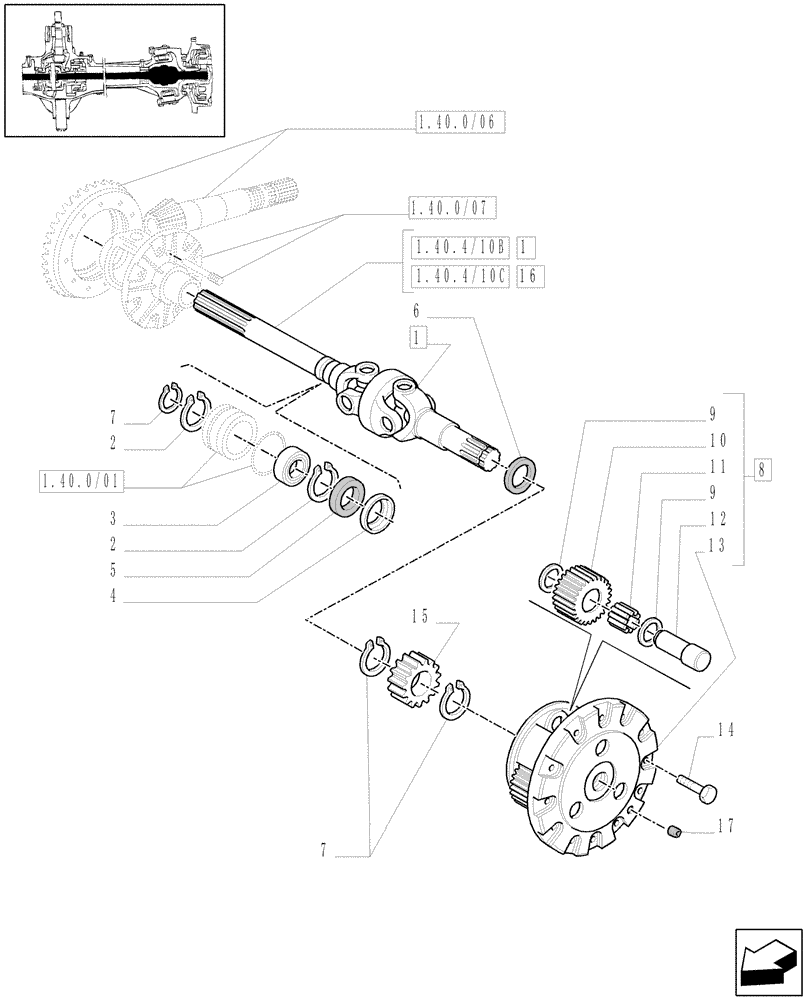

Запчасти Case IH MXM155 (1.40.4/10[02]) - (VAR.452) 4WD FRONT AXLE WITH BRAKES FOR TERRALOCK - GEARS AND DIFFERENTIAL AXLE (04) - FRONT AXLE & STEERING

1

5181947

AXLE-SHAFT, ARTICULA

LH, MXM155

1шт.

1

5181946

AXLE-SHAFT, ARTICULA

RH, MXM155

1шт.

2

11061376

SNAP RING,M68, Int

4шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

5105948

SEAL

45 x 68 x 12

2шт.

6

5183845

SEAL

65 x 45 x 18.5

2шт.

7

5123651

SNAP RING,36mm, External

6шт.

8

5181054

CARRIER

2шт.

9

4998022

THRUST WASHER,32mm ID x 55mm OD x 0.8mm Thk

12шт.

10

5102132

PLANETARY GEAR

6шт.

11

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

31.8 x 41.9 x 35.5

6шт.

12

5181056

PIN,35mm OD x 75.5mm L

6шт.

13

5181054

CARRIER

2шт.

14

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

24шт.

15

5136819

PLANETARY GEAR

2шт.

16

5191701

AXLE-SHAFT, ARTICULA

LH, MXM175, MXM190

1шт.

16

5191702

AXLE-SHAFT, ARTICULA

RH, MXM175, MXM190

1шт.

17

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

2шт.
