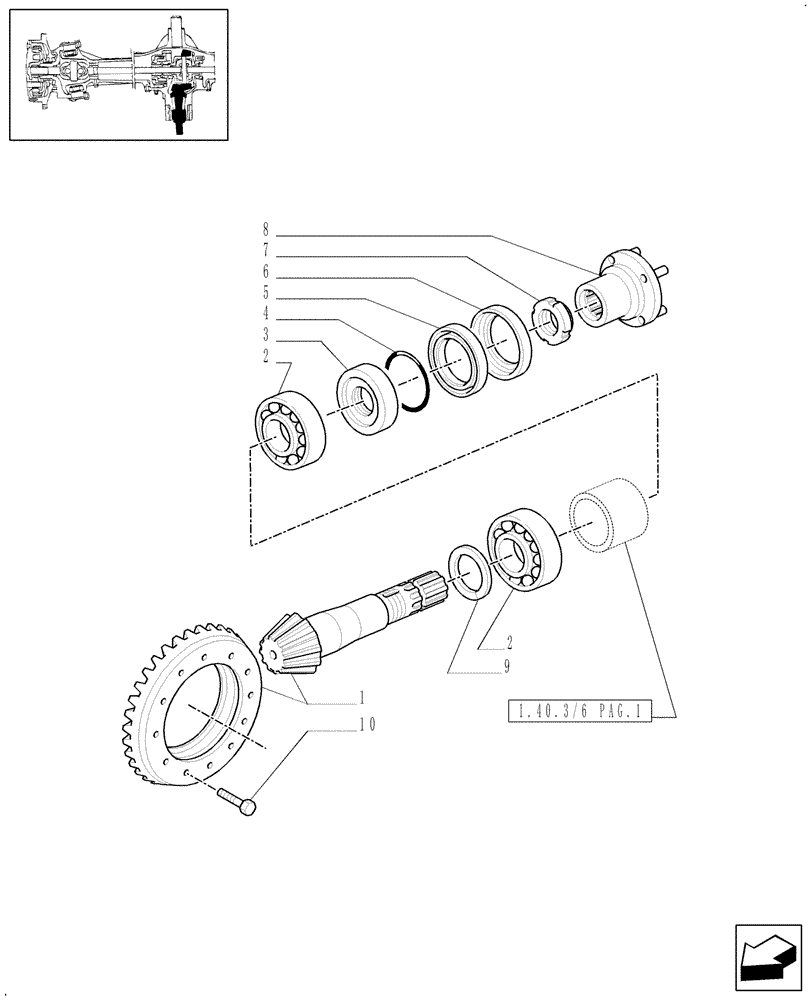

Запчасти Case IH MXM155 (1.40.3/06[02]) - (VAR.420) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK - SEMI POWER SHIFT - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING

1

5179445

GEAR SET

Ratio 10/34

1шт.

2

5141714

TAPERED BEARING,45mm ID x 85mm OD x 20mm W

45 x 100 x 38.25

2шт.

3

5179417

SEAL,45mm ID x 80mm OD x 20mm Thk

SEALRING

1шт.

4

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

5

5119262

SEAL,80mm ID x 110mm OD x 12mm Thk

80 x 110 x 12

1шт.

6

5179995

CUP

1шт.

7

5111953

NUT,M24 x 1.5

M24 x 20

1шт.

8

5190345

FLANGE

1шт.

9

7888012

SHIM,45.1mm ID x 58mm OD x 0.5mm Thk

45.1 x 58 x 0.5 mm

1шт.

9

5121690

RING,45.1mm ID x 58mm OD x 2.3mm Thk

1шт.

9

5121691

RING,45.1mm ID x 58mm OD x 2.4mm Thk

1шт.

9

4999063

SHIM,45.1mm ID x 58mm OD x 2.5mm Thk

1шт.

9

4999064

SHIM,45.1mm ID x 58mm OD x 2.6mm Thk

1шт.

9

4999065

SHIM,45.1mm ID x 58mm OD x 2.7mm Thk

1шт.

9

4999066

RING,45.1mm ID x 58mm OD x 2.8mm Thk

1шт.

9

4999067

SHIM,45.1mm ID x 58mm OD x 2.9mm Thk

1шт.

10

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.
