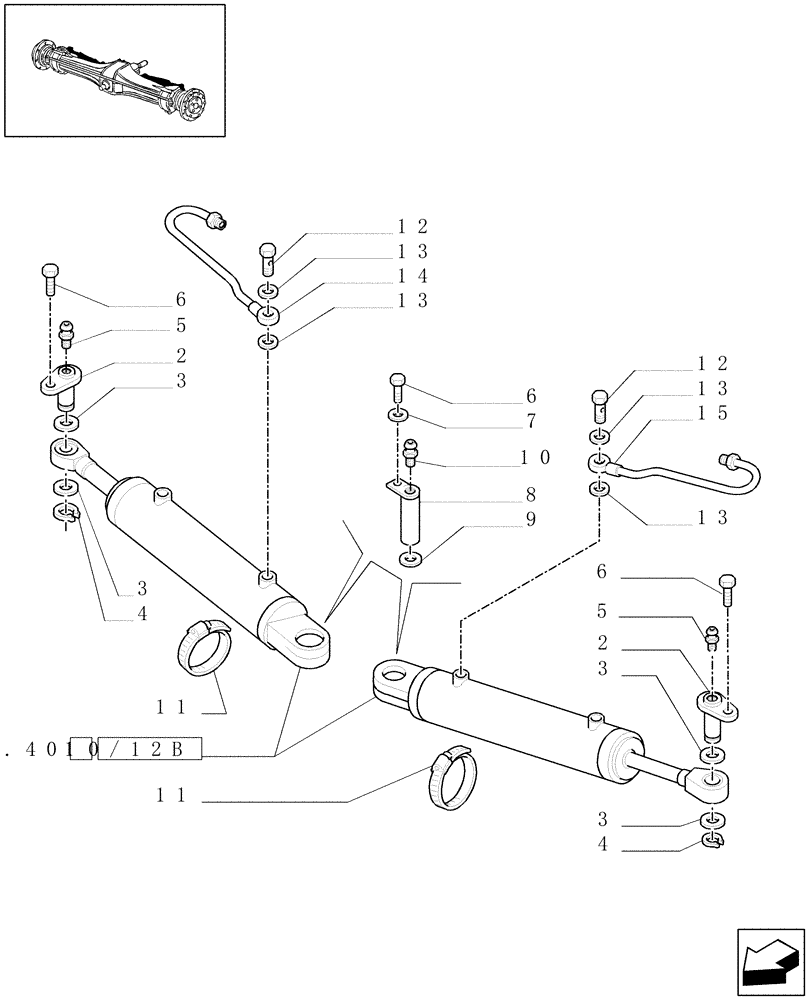

Запчасти Case IH MXM155 (1.40.0/12[02]) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING

1

5164022

STEERING CYLINDER

2шт.

2

5171707

PIN,24.97mm OD x 91mm L

2шт.

3

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

2шт.

12

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

13

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

4шт.

14

5189866

HYD TUBE

RH

1шт.

15

82022513

HYD TUBE,10 mm OD, 176, 27 mm Length

LH

1шт.
