(1.40.0/10B) - 4WD FRONT AXLE - AXLE-SHAFT ARTICULATED BREAKDOWN

Запчасти Case IH MXM155 (1.40.0/10B) - 4WD FRONT AXLE - AXLE-SHAFT ARTICULATED BREAKDOWN (04) - FRONT AXLE & STEERING

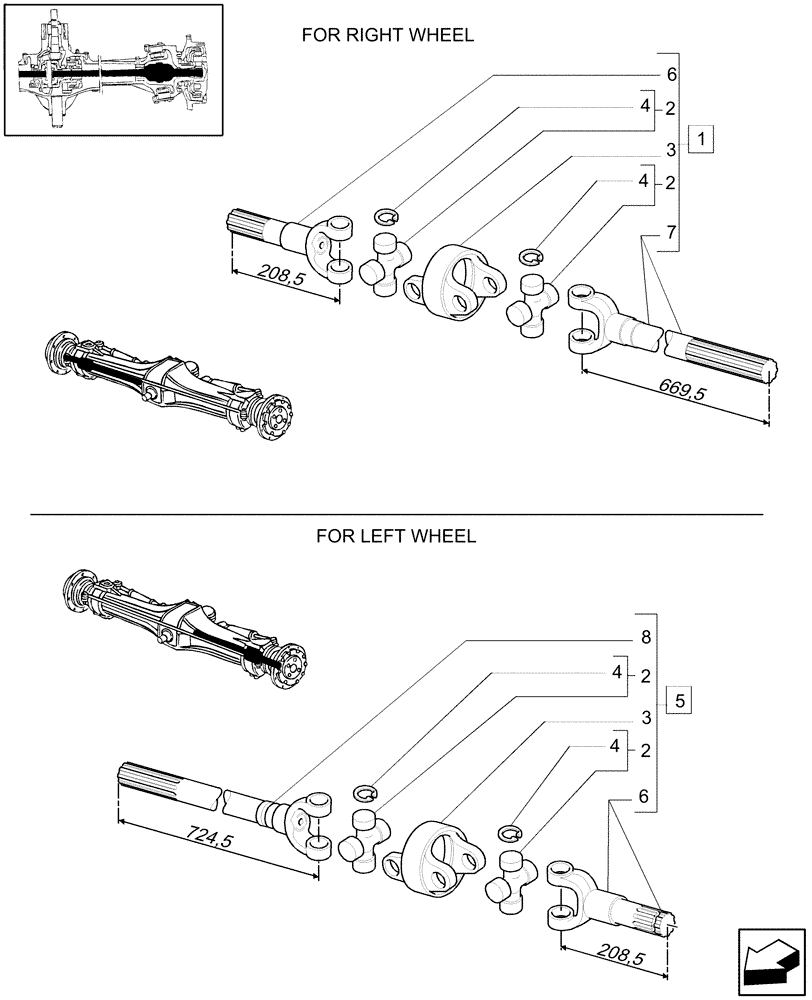

Схема запчастей Case IH MXM155 - (1.40.0/10B) - 4WD FRONT AXLE - AXLE-SHAFT ARTICULATED BREAKDOWN (04) - FRONT AXLE & STEERING
6
1
5
2
4
4
2
7
4
3
3
2
for left wheel
8
for right wheel
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174475

AXLE-SHAFT, ARTICULA

Assy, RH

1шт.

2

5191482

SPIDER

2шт.

3

5191485

YOKE

1шт.

4

5191483

CIRCLIP

8шт.

5

5174473

AXLE-SHAFT, ARTICULA

Assy, LH

1шт.

6

5191484

SHAFT

Short, LH & RH

2шт.

7

5191486

SHAFT

Long, RH

1шт.

8

5191487

SHAFT

Long, LH

1шт.
