Запчасти Case IH MXM155 (1.40.0/07[02]) - 4WD FRONT AXLE - DIFFERENTIAL LOCKING (04) - FRONT AXLE & STEERING

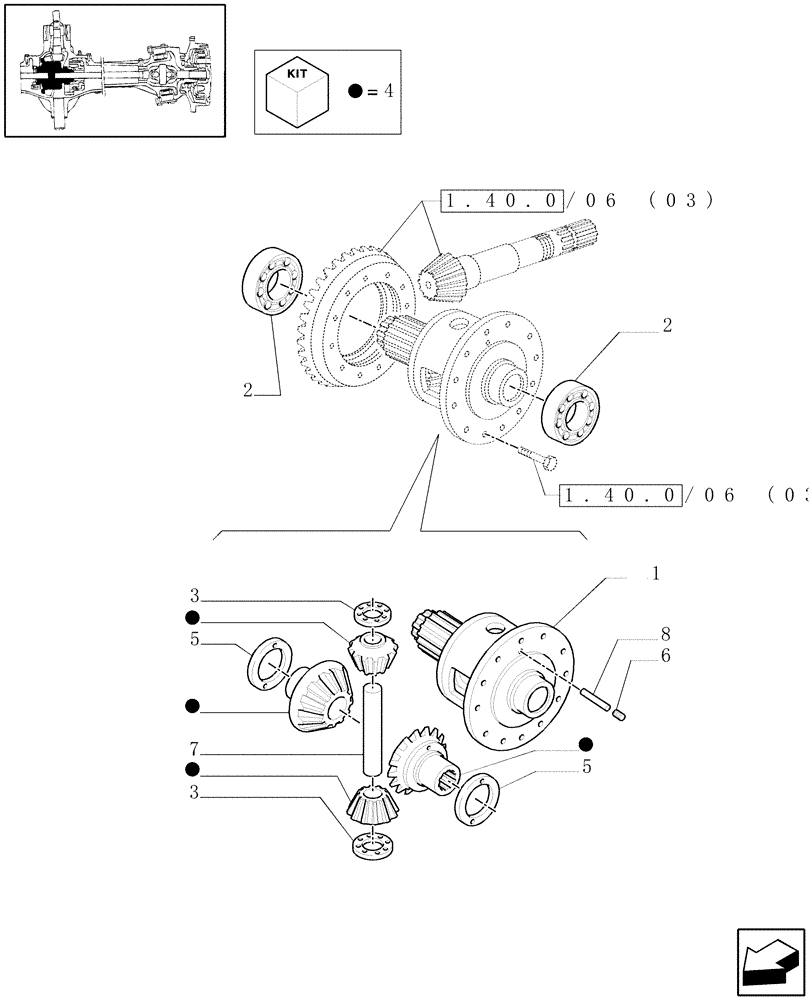

Схема запчастей Case IH MXM155 - (1.40.0/07[02]) - 4WD FRONT AXLE - DIFFERENTIAL LOCKING (04) - FRONT AXLE & STEERING
1.40.0/06 (03)
1
1.40.0/06 (03)
7
4
5
2
4
8
4
3
2
3
5
4
6
4
4

Артикул

Название

Примечание

Количество

1

5174845

HOUSING

Differential Gear

1шт.

2

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

70 x 110 x 25

2шт.

3

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

2шт.

4

87381508

GEAR SET

1шт.

5

4997235

THRUST WASHER,51mm ID x 70mm OD x 1.5mm Thk

1шт.

5

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

1.0 mm

1шт.

5

5138267

THRUST WASHER,51mm ID x 70mm OD x 1.7mm Thk

1шт.

5

5144801

THRUST WASHER,51mm ID x 70mm OD x 1.4mm Thk

1шт.

5

5144802

THRUST WASHER,51mm ID x 70mm OD x 1.8mm Thk

1шт.

5

5170588

THRUST WASHER,51mm ID x 70mm OD x 1.9mm Thk

1шт.

5

5170589

THRUST WASHER,51mm ID x 70mm OD x 2mm Thk

1шт.

5

5182769

THRUST WASHER,51mm ID x 70mm OD x 2.1mm Thk

1шт.

5

5182770

THRUST WASHER,51mm ID x 70mm OD x 2.2mm Thk

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

7

5168624

PIN,24.96mm OD x 157.5mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

Выбрано товаров: 16
