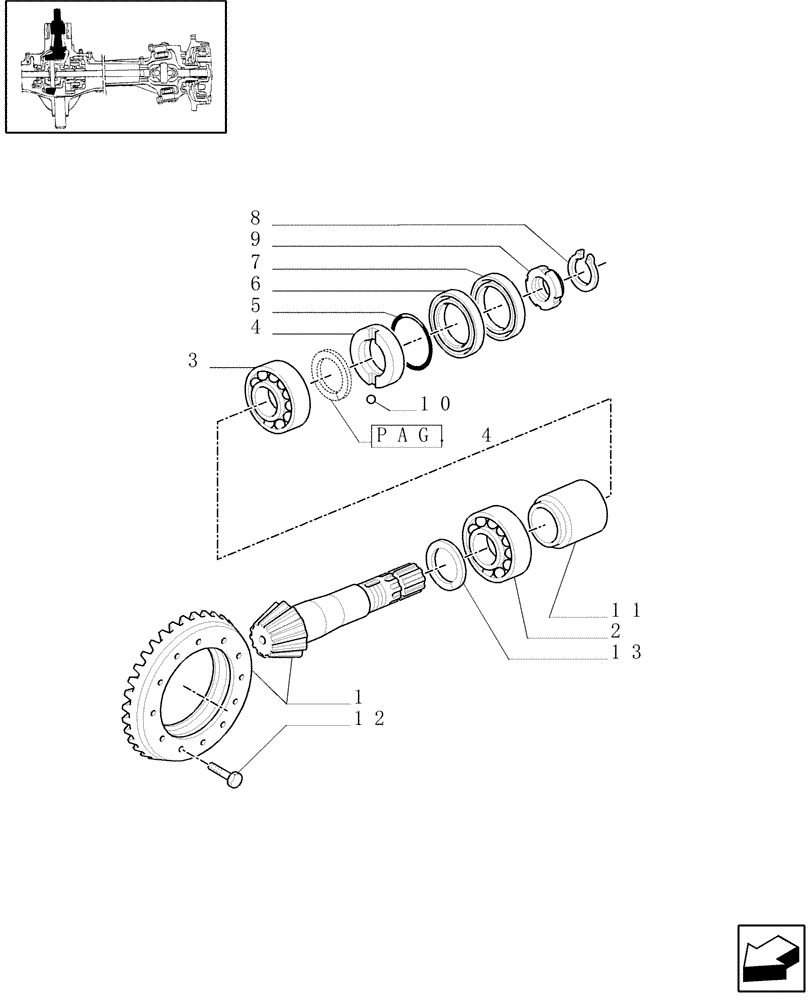

Запчасти Case IH MXM155 (1.40.0/06[03]) - 4WD FRONT AXLE - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING

1

5146255

BEVEL GEAR

Assy (Ratio 10/34)

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275 x 82.550 x 26.543

1шт.

3

5141714

TAPERED BEARING,45mm ID x 85mm OD x 20mm W

45 x 100 x 38.25

1шт.

4

5143112

SEALING RING,40.1mm ID x 57mm OD x 18mm L

SEALRING

1шт.

5

14454580

O-RING,34.65mm ID x 1.78mm

(M34.65 ID x 1.78 Thk)

1шт.

6

5111415

OIL SEAL,57mm ID x 85mm OD x 12mm Thk

57 x 85 x 12

1шт.

7

5109309

SEAL,57.2mm ID x 85mm OD x 1mm Thk

1шт.

8

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

9

5119147

RING NUT,M40 x 1.5

x 19.5 M40 x 1.5

1шт.

10

20419320

BALL,6.35mm OD

1шт.

11

5169286

SPACER,41.7mm ID x 52mm OD x 58mm L

1шт.

12

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

13

7888012

SHIM,45.1mm ID x 58mm OD x 0.5mm Thk

45.1 x 58 x 0.5 mm

1шт.

13

5121690

RING,45.1mm ID x 58mm OD x 2.3mm Thk

1шт.

13

5121691

RING,45.1mm ID x 58mm OD x 2.4mm Thk

1шт.

13

4999063

SHIM,45.1mm ID x 58mm OD x 2.5mm Thk

1шт.

13

4999064

SHIM,45.1mm ID x 58mm OD x 2.6mm Thk

1шт.

13

4999065

SHIM,45.1mm ID x 58mm OD x 2.7mm Thk

1шт.

13

4999066

RING,45.1mm ID x 58mm OD x 2.8mm Thk

1шт.

13

4999067

SHIM,45.1mm ID x 58mm OD x 2.9mm Thk

1шт.
