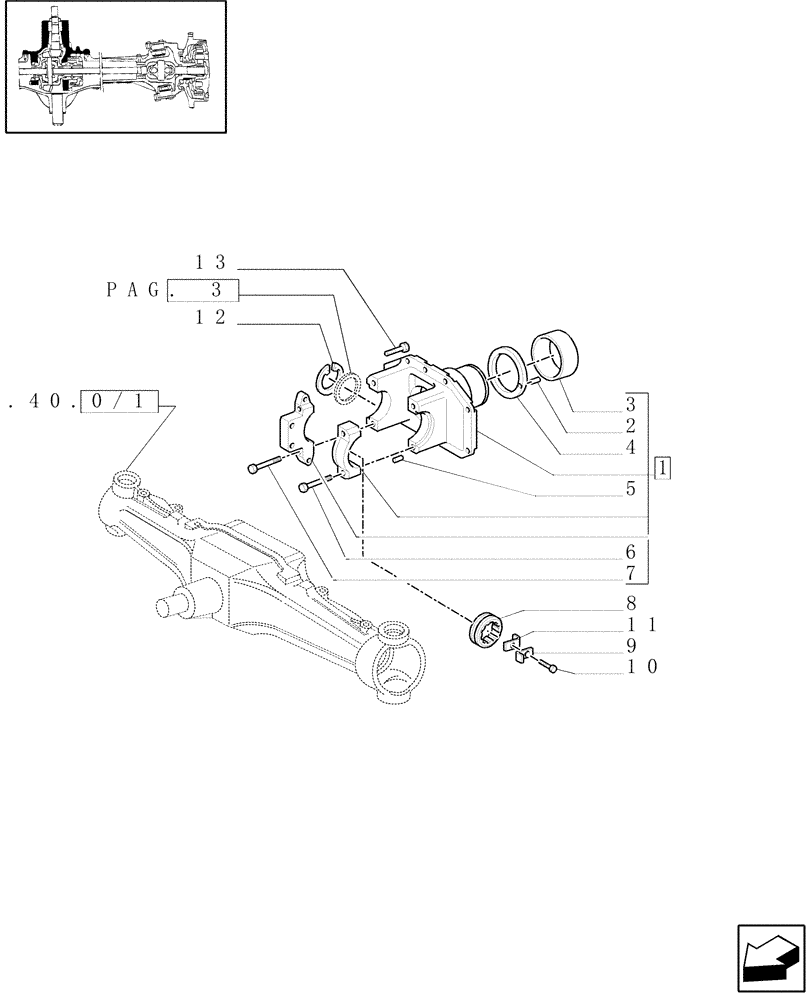

Запчасти Case IH MXM155 (1.40.0/05[02]) - 4WD FRONT AXLE - SUPPORT (04) - FRONT AXLE & STEERING

1

5182885

SUPPORT

1шт.

2

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

3

5136116

BUSHING,105mm ID x 115.56mm OD x 72mm L

105 x 115.5 x 72

1шт.

4

5136115

RING,105.3mm ID x 148mm OD x 5mm Thk

105 x 148 x 5

1шт.

5

4966530

DOWEL

M6 x 18

4шт.

6

14255330

SCREW,M14 x 1.5 x 75mm

M14 x 1.5 x 75

2шт.

7

14255731

LOCK BOLT,Hex, M14 x 1.5 x 90mm, Cl 10.9

2шт.

8

5110423

RING NUT

M115 x 15

1шт.

9

562659

PLATE

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

4966243

ADJUSTING PLATE

1шт.

12

11075476

SNAP RING,M110, Int

1шт.

13

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

14шт.
