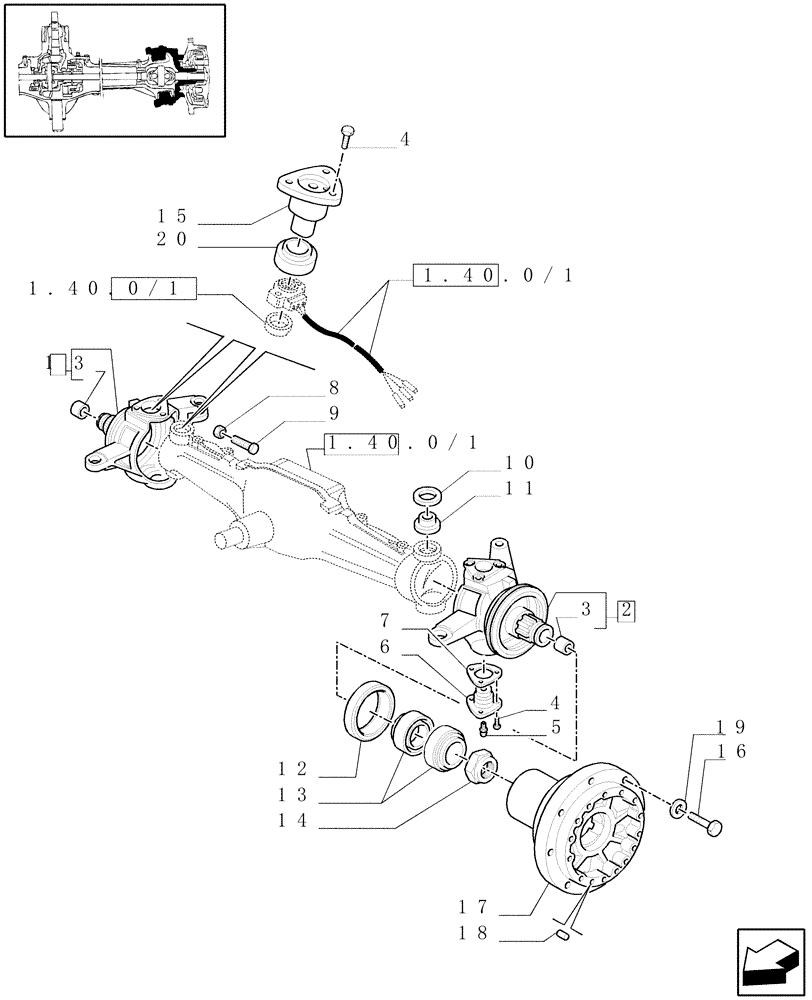

Запчасти Case IH MXM155 (1.40.0/02[02]) - 4WD FRONT AXLE - STEERING AXLES - HUBS - C5196 (04) - FRONT AXLE & STEERING

1

5171706

STEERING KNUCKLE,RH

RH

1шт.

2

5171704

STEERING KNUCKLE,LH

LH

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

5

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

1шт.

6

5137138

BALL STUD

BALL PIN

3шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

5179447

SCREW

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

4шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

5178141

SEAL

190 x 220 x 14.5-18

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.588 x 158.750 x 23.02

4шт.

14

5141692

NUT,M90 x 2

2 M90 x 2

2шт.

15

5175208

PIN

1шт.

16

11390534

BOLT,Hex, M16 x 1.5 x 40mm, Cl 10.9

16шт.

17

5156065

HUB

2шт.

18

4985063

DOWEL,12mm OD x 20mm L

4шт.

19

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

20

5169911

BALL JOINT

80 mm ID

1шт.
