Запчасти Case IH MXM155 (1.38.8/01) - (VAR.436/1) RICE VERSION FOR FULL POWER-SHIFT & SEMI POWER-SHIFT TRANSMISSIONS (04) - FRONT AXLE & STEERING

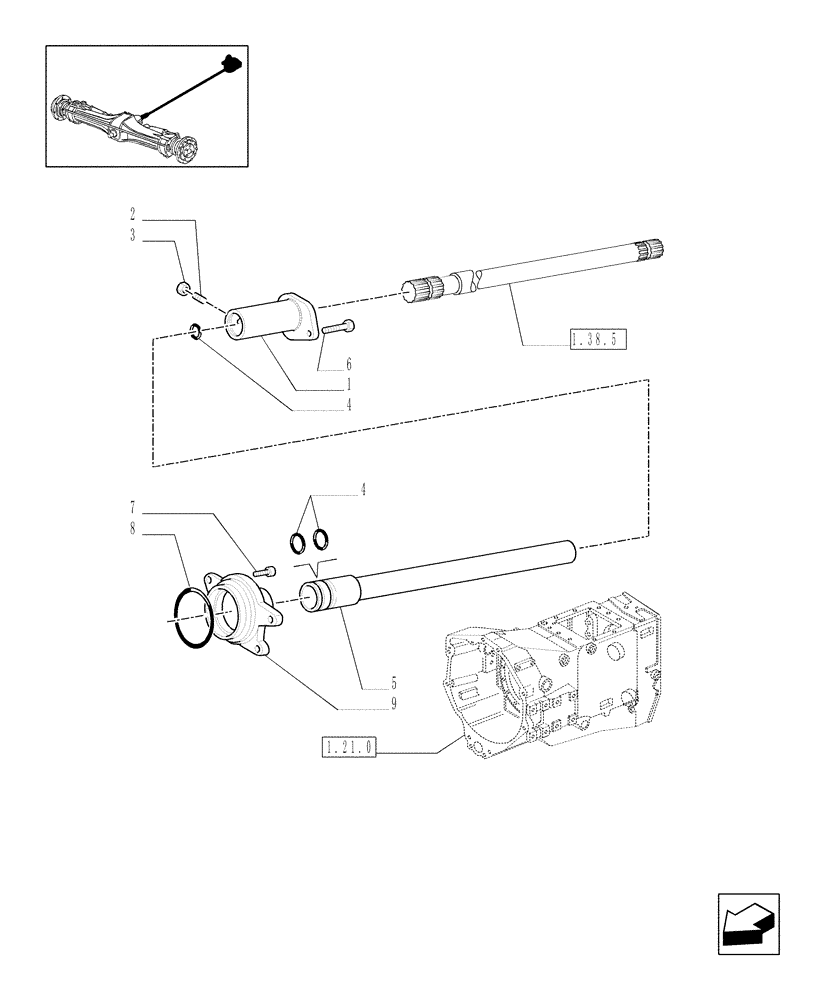

Схема запчастей Case IH MXM155 - (1.38.8/01) - (VAR.436/1) RICE VERSION FOR FULL POWER-SHIFT & SEMI POWER-SHIFT TRANSMISSIONS (04) - FRONT AXLE & STEERING
7
9
1
6
3
5
2
8
4
4
1.38.5
1.21.0

Артикул

Название

Примечание

Количество

1

5183981

FLANGE

1шт.

2

13809631

SET SCREW,Hex Soc, M10 x 20mm, Flat Pt

1шт.

3

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

4

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

1шт.

4

14459880

O-RING,56.82mm ID x 2.62" Width

2шт.

5

5190731

SHIELD

1шт.

6

14459880

O-RING,56.82mm ID x 2.62" Width

2шт.

6

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

8

14461680

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

9

5148529

SLEEVE

1шт.

Выбрано товаров: 11
