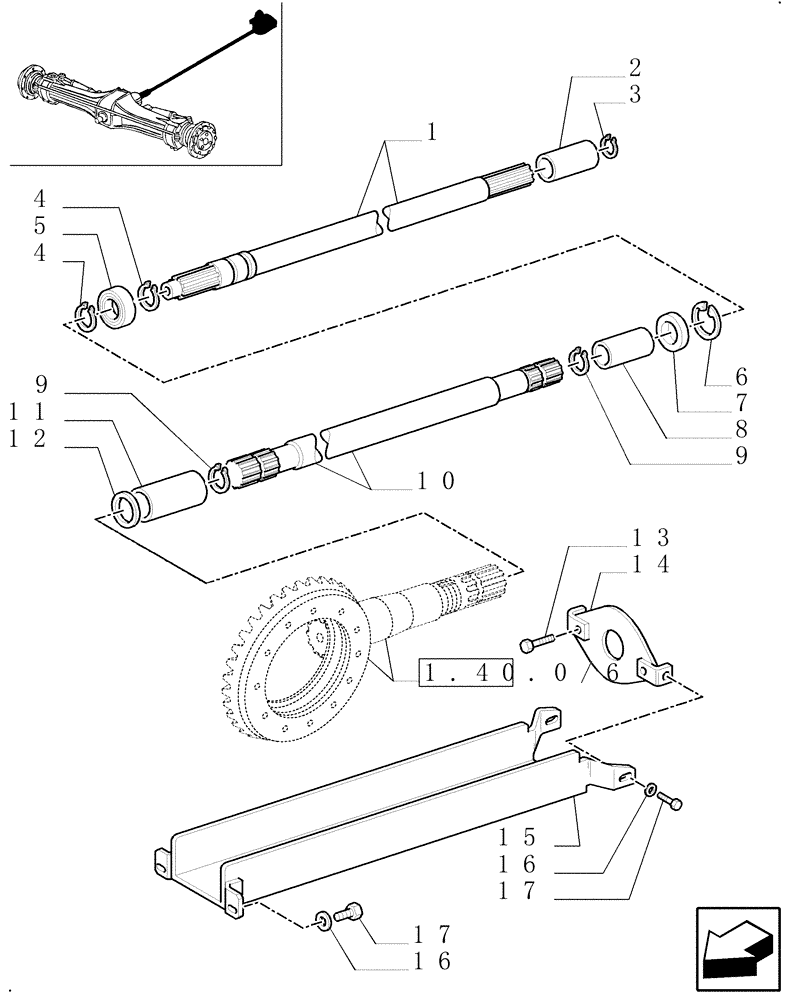

Запчасти Case IH MXM155 (1.38.5[02]) - FRONT AXLE PROPELLER SHAFT (4WD) (04) - FRONT AXLE & STEERING

1

5184027

DRIVE SHAFT

Rear

1шт.

2

5172239

SPLINED COUPLING,12T

80.5 mm lg - Rear

1шт.

3

11058876

SNAP RING,M30, Int

1шт.

4

11068876

SNAP RING,M40, Ext

2шт.

5

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

1шт.

6

11061976

SNAP RING,M80, Int

1шт.

7

5125897

OIL SEAL,40mm ID x 80mm OD x 12mm Thk

40 x 80 x 12

1шт.

8

5183663

SPLINED COUPLING,12T

110 mm lg - Mid.

1шт.

9

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

10

5183667

DRIVE SHAFT

Front

1шт.

11

4994076

SLEEVE,12T

80.5 mm lg - Front

1шт.

12

5118722

SHIM,34.6mm ID x 48mm OD x 1mm Thk

1.0 mm

1шт.

12

5118723

SHIM,34.6mm ID x 48mm OD x 1.2mm Thk

1.2 mm

1шт.

12

5118724

SHIM,34.60mm ID x 48.00mm OD x 1.50mm T

1.5 mm

1шт.

12

5118725

SHIM,34.6mm ID x 48mm OD x 1.8mm Thk

1.8 mm

1шт.

13

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

14

5191197

FLANGE

1шт.

15

47125905

SHIELD

1шт.

16

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

17

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

M8 x 1.25 x 16

4шт.
