Запчасти Case IH MXM155 (1.21.1/01[03]) - SUPPORT FOR 4WD FRONT AXLE (03) - TRANSMISSION

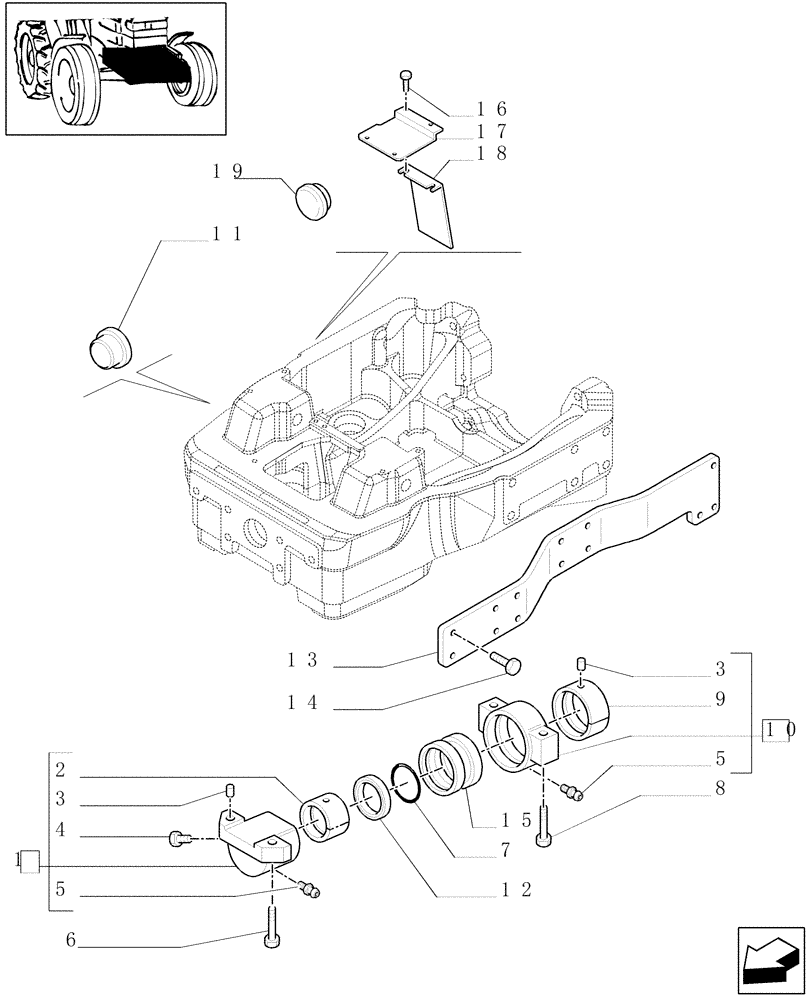

Схема запчастей Case IH MXM155 - (1.21.1/01[03]) - SUPPORT FOR 4WD FRONT AXLE (03) - TRANSMISSION
1
12
9
19
2
3
5
13
7
6
3
18
16
15
17
4
14
5
8
10
11

Артикул

Название

Примечание

Количество

1

5140890

SUPPORT

1шт.

2

5140889

BUSHING,62.8mm ID x 68.19mm OD x 55mm L

1шт.

3

10837710

DOWEL,M10 x 25

4шт.

4

13410917

VALVE PRESSURE RELIE

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18 x 1.5 x 65

2шт.

7

14471680

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

1шт.

8

14272534

LOCK BOLT,Hex, M18 x 1.5 x 100mm, Cl 10.9

2шт.

9

5140589

BUSHING,115.64mm ID x 120.19mm OD x 52mm L

1шт.

10

5148528

SUPPORT

1шт.

11

82013380

CAP COVER

4шт.

12

5140888

RING

1шт.

13

82036332

SIDE RAIL

LH, MXM175, MXM190

1шт.

13

82036333

SIDE RAIL

RH, MXM175, MXM190

1шт.

14

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

Self Locking, M20 x 2.5 x 58, 12.9

16шт.

15

5188607

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

2шт.

16

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

17

5175024

GUARD

MXM155

1шт.

18

5169749

GUARD

MXM155

1шт.

19

5175030

PLUG

31.5 x 10, MXM155

4шт.

19

82032005

PLUG

50.8 x 25.4, MXM155

2шт.

Выбрано товаров: 21
