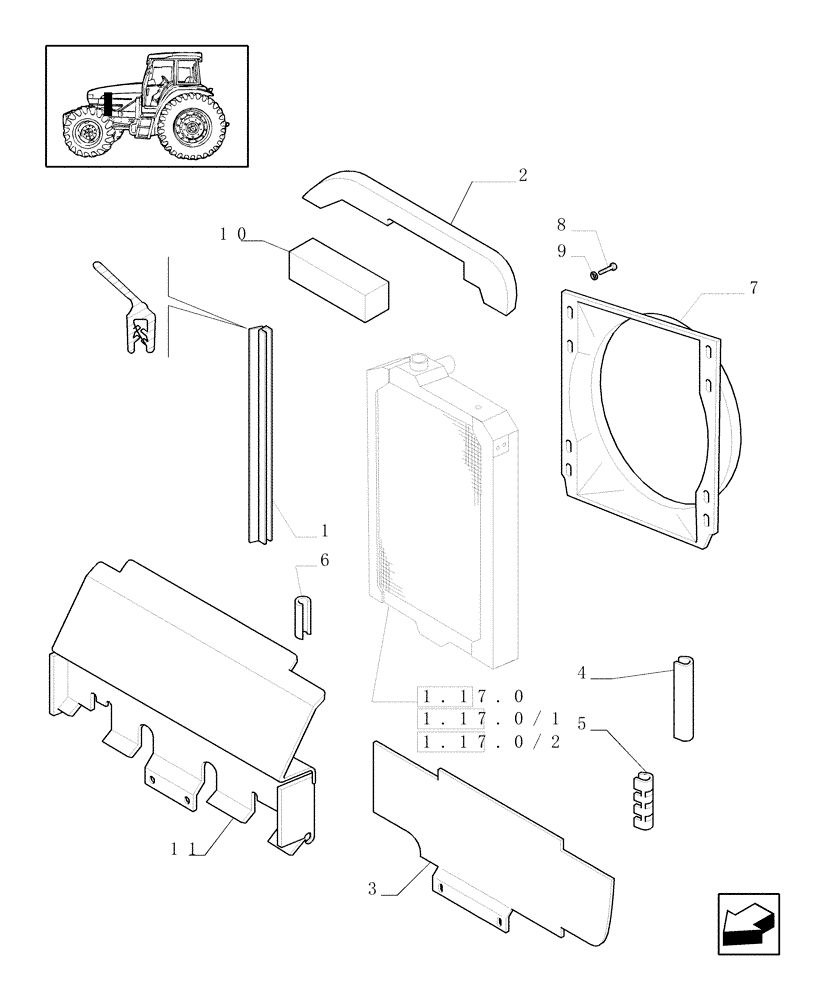

Запчасти Case IH MXM140 (1.17.5) - RADIATOR & RELATED PARTS (02) - ENGINE EQUIPMENT

1

87393575

RUBBER STRIP

MXM120, MXM130, MXM140, MXM155

2шт.

1

87393579

SEAL,680mm L

MXM175, MXM190

2шт.

2

82033527

SEAL

1шт.

3

87308083

PLATE

4WD, MXM120, MXM130, Serial Range: -ACM262211

1шт.

W/Equip. 780, 781 Front HPL and Front PTO and Equip. 789 Front HPL Less PTO also (4WD)

1шт.

3

87308084

PLATE

4WD, MXM140, MXM155, MXM175, MXM190, Serial Range: -ACM262211

1шт.

W/Equip. 780, 781 Front HPL and Front PTO and Equip. 789 Front HPL Less PTO also (4WD)

1шт.

3

87308085

PLATE

4WD, MXM120, MXM130

1шт.

W/Equip.420, 452/1, 463, 463/1, 789, 4WD Front Axle W/Suspension and "Terralock" - Semi Power Shift, W/Equip. 780, 781 Front HPL and Front P.T.O. - W/Front Axle W/Suspensions, also (4WD)

1шт.

3

87308086

PLATE

4WD, MXM140, MXM155, MXM175, MXM190

1шт.

W/Equip.420, 452/1, 463, 463/1, 789, 4WD Front Axle W/Suspension and "Terralock" - Semi Power Shift, W/Equip. 780, 781 Front HPL and Front P.T.O. - W/Front Axle W/Suspensions, also (4WD)

1шт.

4

82869674

MOLDING,88.5mm L

, Serial Range: -C4855

1шт.

5

81816009

BUMPER

, Serial Range: -C4855

1шт.

6

82015330

BUMPER

, Serial Range: -C4855

1шт.

7

82037648

SHROUD

MXM120, MXM130

1шт.

7

87388169

SHROUD

MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

7

82037649

SHROUD

MXM140, MXM155

1шт.

7

87387898

SHROUD

MXM175, MXM190

1шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

8шт.

9

81872184

WASHER,6.4mm ID x 17mm OD

8шт.

10

82022052

SEAL,574mm x 30mm x 15mm

574MM, MXM175, MXM190, 2WD

1шт.

11

87348718

PLATE

MXM120, MXM130, Black, Start Serial: ACM262212

1шт.

W/Equip. 780, 781 Front HPL and Front PTO and Equip. 789 Front HPL Less PTO also (4WD)

1шт.

11

87354781

PLATE

MXM140, MXM155, MXM175, MXM190, Start Serial: ACM262212

1шт.

W/Equip. 780, 781 Front HPL and Front PTO and Equip. 789 Front HPL Less PTO also (4WD)

1шт.
