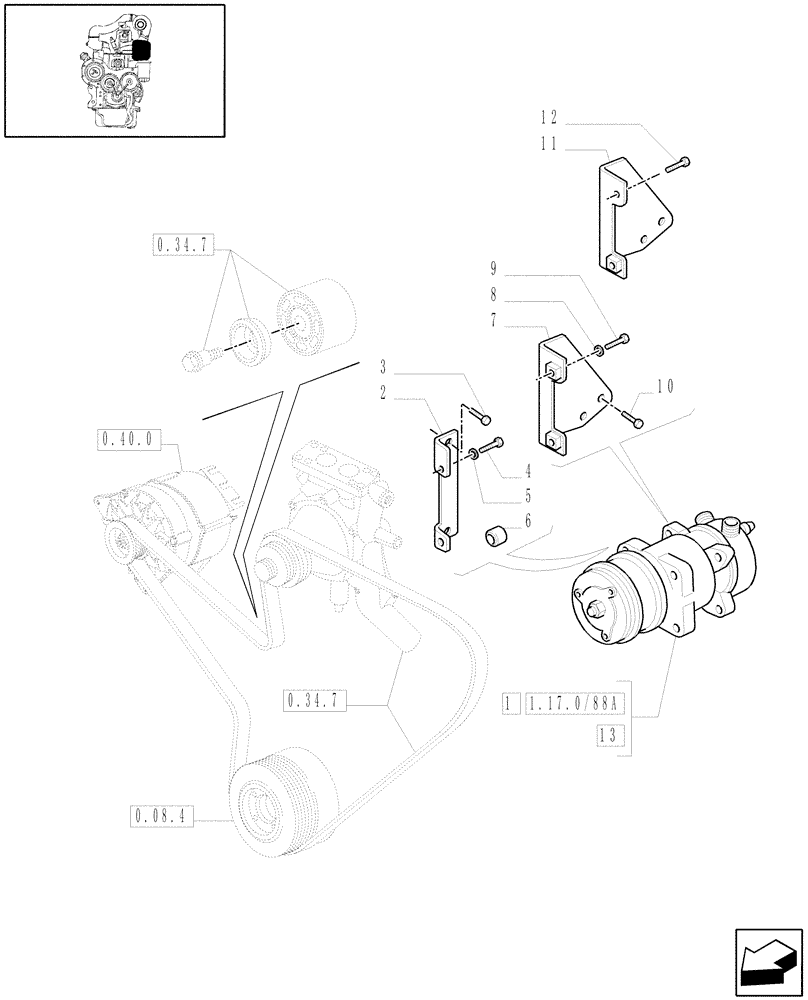

Запчасти Case IH MXM140 (1.17.0/88) - COMPRESSOR, AIR CONDITIONING (02) - ENGINE EQUIPMENT

1

82016158

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

, Serial Range: -C5908

1шт.

1

82016158C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR

1шт.

2

82016020

BRACKET

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

2шт.

5

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

6

82016174

DOWEL

M8.5 x 11.2 x 8.5

2шт.

7

87368345

BRACKET

, Serial Range: -C5325

1шт.

8

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

9

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

10

83956692

BOLT,Hex, 3/8" - 16 x 3/4"

3/8"-16 x 3/4"

2шт.

11

87391185

BRACKET

, Start Serial: D5325

1шт.

12

11701711

NUT,Hex, M10, Cl 8, ZND

, Start Serial: D5325

1шт.

13

87709786

AIRCOND. COMPRESSOR

, Start Serial: D5908

1шт.

13

87709786GV

AIR COMPRESSOR

Value

1шт.

13

87709786R

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor

1шт.

13

87709786C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR

1шт.
