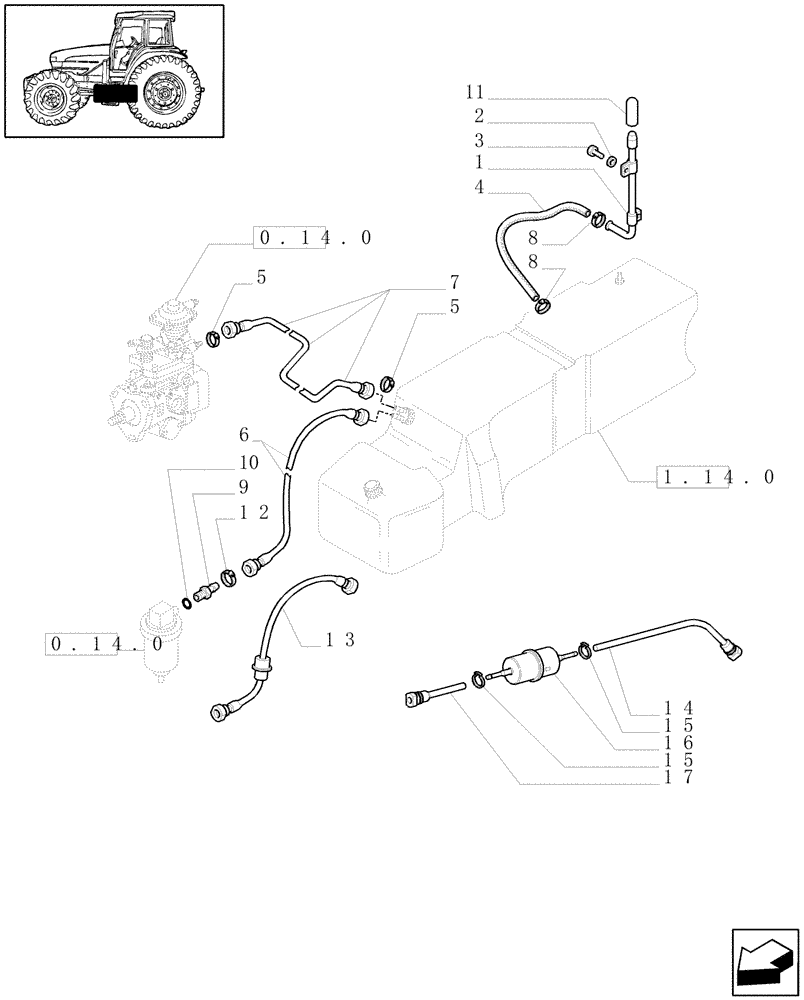

Запчасти Case IH MXM140 (1.14.6[01]) - FUEL LINES - C5398 (02) - ENGINE EQUIPMENT

1

82023228

TUBE,332 mm Length

1шт.

2

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

4

82023229

TUBE,15.90 mm ID x 640.00 mm

1шт.

5

80529070

COLLAR

2шт.

6

82012602

FUEL HOSE,9.5mm ID x 1000mm L

, Serial Range: -C5254

1шт.

7

82031644

TUBE

, Serial Range: -ACM263989

1шт.

7

87389056

RETURN PIPE

, Start Serial: ACM263990

1шт.

7

82013691

FLEXIBLE HOSE,9.5mm ID x 1850mm L, SAE 30R7

1шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, Joystick for Loader

1шт.

8

82039343

HOSE CLAMP,16mm - 27mm

2шт.

9

82012598

FITTING

1/2-20

1шт.

10

83904845

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

7/16" ID x .07 Thk

1шт.

11

82012157

PLUG

1шт.

12

82039341

CLAMP,12mm - 22mm

2шт.

13

87374673

FLEXIBLE HOSE

, Serial Range: D5254-C5328

1шт.

14

87393999

HYD TUBE,10 mm DIA x 759, 50 mm L

, Start Serial: D5328

1шт.

15

87398435

CLAMP

, Start Serial: D5328

2шт.

16

87329736

FUEL FILTER

Inline, Start Serial: D5328

1шт.

17

87393998

HOSE ASSY.

, Start Serial: D5328

1шт.
