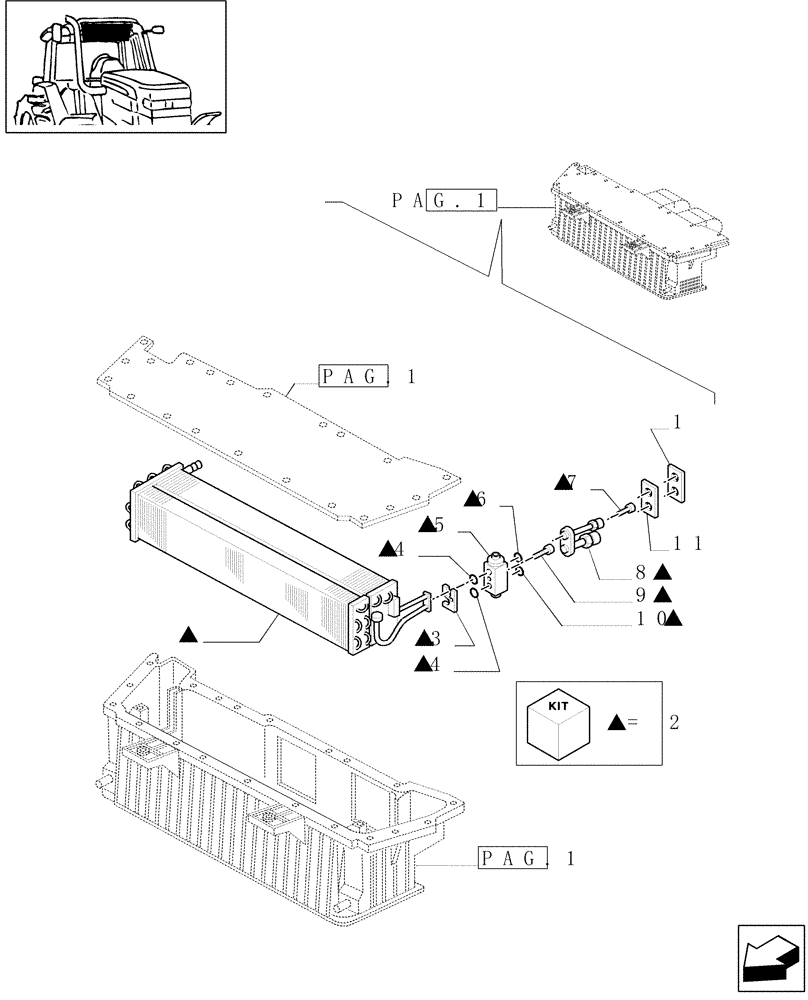

Запчасти Case IH MXM140 (1.94.2/ A[02]) - AIR CONDITIONING BREAKDOWN - C4995 (10) - OPERATORS PLATFORM/CAB

1

81872757

SEAL

118 x 58

1шт.

2

82009238

EVAPORATOR

& Heater Assy

1шт.

3

81874723

PLATE

1шт.

4

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

(.426" ID x .070" Thk)

2шт.

5

82000932

VALVE, THERMAL EXPAN,Air Conditioing

Expansion

1шт.

Has 2 same size ports on one side and 2 different size ports on the opposite side.

1шт.

6

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

81874722

HEX SOC SCREW,M6 x 15mm

1шт.

8

82009113

TUBE,60, 26 mm Length

Evaporator and Heat Exchanger

1шт.

9

81874721

HEX SOC SCREW,M5 x 39.5mm

2шт.

10

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk, Green

1шт.

11

82009242

GASKET

114.5 x 37

1шт.
