Запчасти Case IH MXM140 (1.91.4[01]) - WIRE HARNESSES AND FUSE BOX - C4868 (10) - OPERATORS PLATFORM/CAB

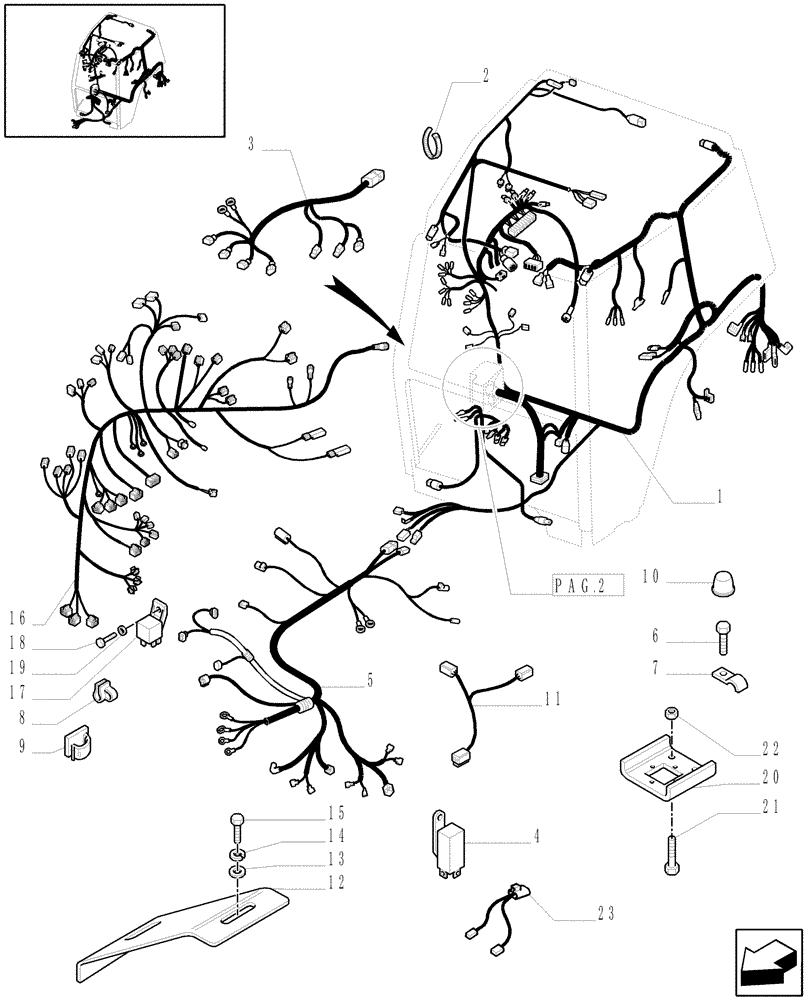

Схема запчастей Case IH MXM140 - (1.91.4[01]) - WIRE HARNESSES AND FUSE BOX - C4868 (10) - OPERATORS PLATFORM/CAB
5
2
6
16
10
.
14
pag
20
21
7
19
18
13
23
11
12
3
2
17
4
22
1
9
15
8

Артикул

Название

Примечание

Количество

1

82034549

WIRE HARNESS

Main Rear, Range Command - Semi Power Shift, MXM120, MXM130, MXM140, Serial Range: -ACM230123

1шт.

1

82028409

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, MX155

1шт.

1

82028253

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

1

82028414

WIRE HARNESS

Main Rear, MXM175, MXM190

1шт.

1

82028410

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140

1шт.

W/HI-LO Trans. 24 x 12 (40 kph-4WD) Equip. 272

1шт.

1

82028408

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, MX155

1шт.

W/Full Power Shift Trans. 18 x 6 (40 KPH 4WD) and 17 x 6 (30 KPH) Equip. 281

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

2

5112712

COLLAR,M4.8 x 283

3шт.

3

82011886

WIRE HARNESS

Console, RH

1шт.

4

82015353

RELAY,12V, 0.88A

Turn Indicator

1шт.

5

82028411

WIRE HARNESS

MXM175, MXM190

1шт.

5

82028412

WIRE HARNESS

MXM120, MXM130, MXM140, MX155

1шт.

6

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 16

3шт.

7

83976853

CLIP,12.7mm, Coat, 11.5mm Bolt Hole, J Type

1шт.

8

81813738

CLIP

1шт.

9

83918745

SPRING CLIP

4шт.

10

81864706

BOOT

3шт.

11

82015068

WIRE HARNESS

HPL Pump, Open Center, MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

12

82015352

PLATE

2шт.

13

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

14

12035670

LOCK WASHER

M6

4шт.

15

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

16

82028413

WIRE HARNESS

MXM175, MXM190

1шт.

Main Electronic Full Power shift

1шт.

17

82004463

RELAY,12V, 30A

MXM175, MXM190

2шт.

18

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

19

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

20

82031360

BRACKET

MXM175, MXM190

1шт.

21

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

4шт.

21

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

23

82028417

WIRE HARNESS

Trans. Control

1шт.

Выбрано товаров: 36
