Запчасти Case IH MXM140 (1.89.6/09[01]) - (VAR.900) HYDRAULIC ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - TIE-ROD AND CYLINDER (09) - IMPLEMENT LIFT

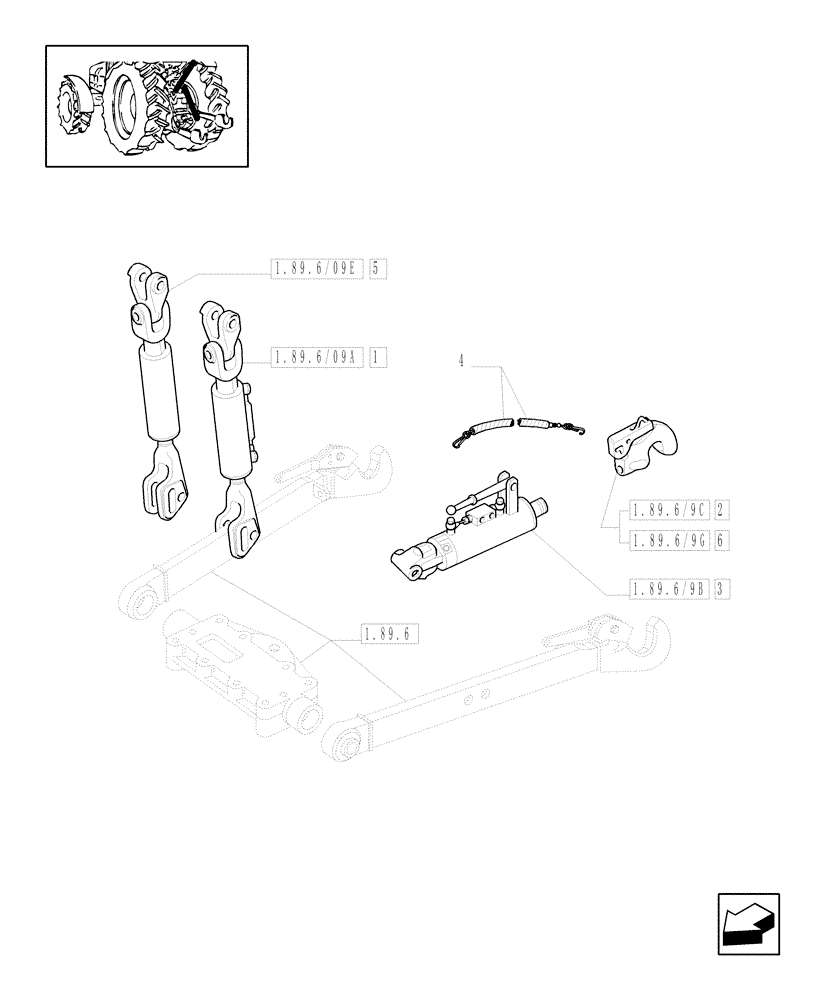

Схема запчастей Case IH MXM140 - (1.89.6/09[01]) - (VAR.900) HYDRAULIC ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - TIE-ROD AND CYLINDER (09) - IMPLEMENT LIFT
5
3
1.89.6/9b
1.89.6/09e
1.89.6/09a
1.89.6/9g
1.89.6
1.89.6/9c
4
1
2
6

Артикул

Название

Примечание

Количество

1

47125828

TIE-ROD

Assy, MXM140, MXM155, Serial Range: -ACM214034

1шт.

Grey Gloss 90

1шт.

1

47130645

TIE-ROD

Assy, MXM140, MXM155, Start Serial: ACM214035

1шт.

2

5174404

HOOK

, Serial Range: -228934

1шт.

3

47125866

UPPER LINK

1шт.

4

5174402

LINK CHAIN,1500mm L

1шт.

5

47125829

LIFT RAM WITH PREDIS

Assy, MXM120, MXM130, Serial Range: -ACM214034

1шт.

Grey Gloss 90

1шт.

5

47130643

LIFT RAM WITH PREDIS

Assy, MXM120, MXM130, Start Serial: ACM214035

1шт.

6

82032580

HOOK

, Start Serial: 228935

1шт.

Выбрано товаров: 10
