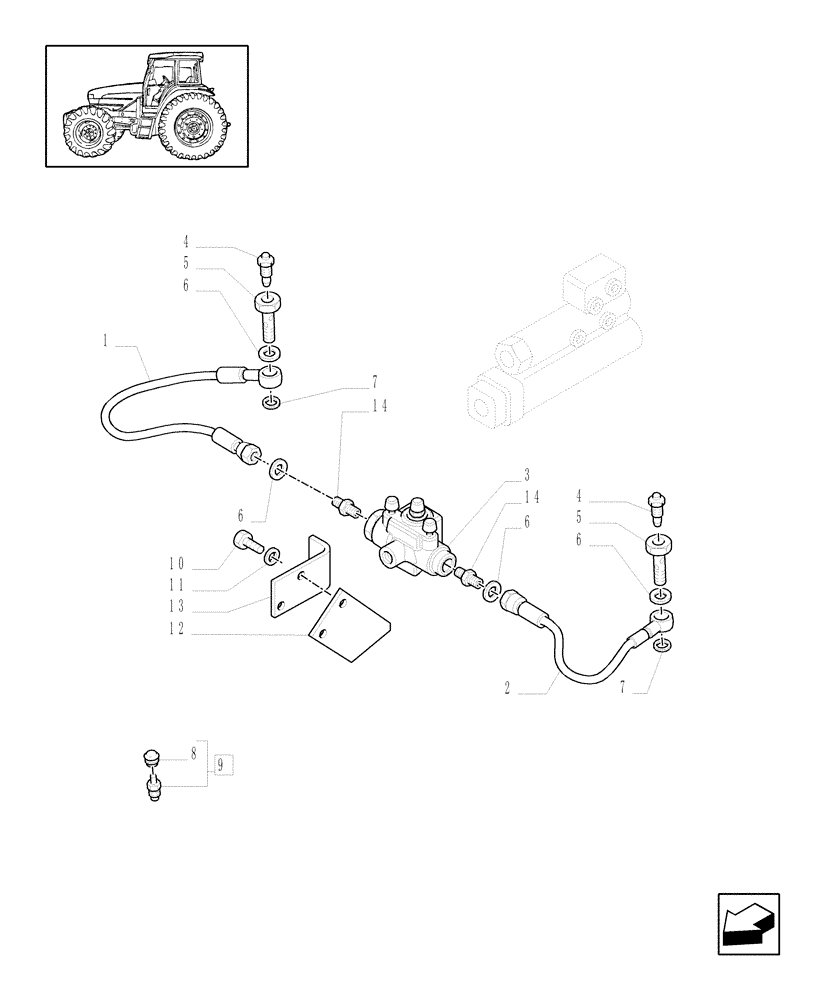

Запчасти Case IH MXM140 (1.82.713/02) - (VAR.362) LOGIC BRAKING VALVE (07) - HYDRAULIC SYSTEM

1

82025005

FLEXIBLE HOSE

RH

1шт.

2

82020138

FLEXIBLE HOSE,4.75mm ID x 430mm L

LH

1шт.

3

47126821

HYDRAULIC VALVE

1шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

4шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

8

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

9

81874592

BLEEDER,M12 x 1 x 15.50mm

1шт.

10

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

3шт.

11

10516674

LOCK WASHER,M8

3шт.

12

82001647

BRACKET

1шт.

13

82004293

BRACKET

1шт.

14

5155506

FITTING

2шт.
