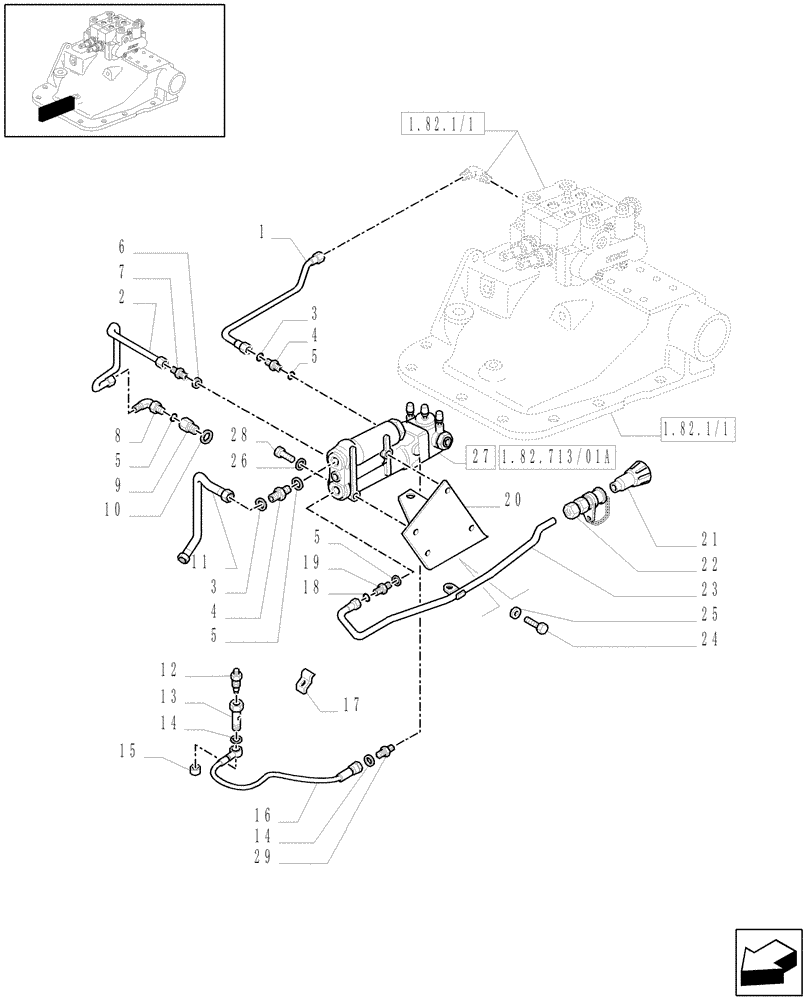

Запчасти Case IH MXM140 (1.82.713) - (VAR.371) TRAILER BRAKE VALVE FOR OPEN CENTRE (07) - HYDRAULIC SYSTEM

1

5185466

BRAKE LINE

1шт.

2

44909711

HYD TUBE

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

4

5185526

HYD CONNECTOR

1-3/16"-12, M18 x 1.5

2шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

3шт.

7

5158799

HYD CONNECTOR

1шт.

8

5157557

ELBOW

1шт.

9

5157973

SPACER

1шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

11

5185397

RIGID TUBE

1шт.

12

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

13

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

M12 x 1.25 x 27

2шт.

14

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

4шт.

15

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

12 x 17 x 5

2шт.

16

82020138

FLEXIBLE HOSE,4.75mm ID x 430mm L

430 mm lg

1шт.

16

82025005

FLEXIBLE HOSE

490 mm lg

1шт.

17

5156374

CLAMP

1шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

19

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

1шт.

20

82001647

BRACKET

1шт.

21

62775076

QUICK MALE COUPLING

1шт.

22

44015354

QUICK MALE COUPLING

1шт.

23

5185474

HYD TUBE

1шт.

24

15977521

BOLT,Hex, M14 x 1.5 x 60mm, Cl 8.8

2шт.

25

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

26

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

27

47126819

BRAKE VALVE

Bosch

1шт.

28

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

29

5155506

FITTING

2шт.
