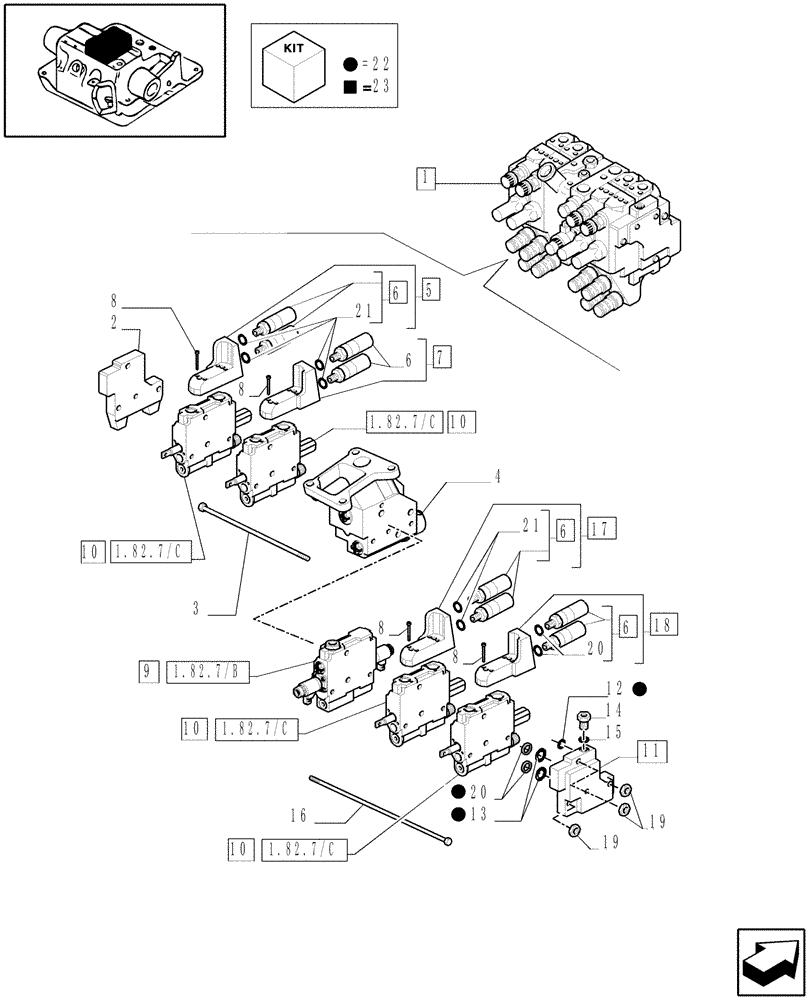

Запчасти Case IH MXM140 (1.82.7/03[02]) - (VAR.425) 4-CONTROL VALVE UNIT (07) - HYDRAULIC SYSTEM

1

5194804

HYD VALVE SECTION

Assy

1шт.

2

5190710

PLATE

1шт.

3

5195170

BOLT

3шт.

4

5195158

BODY

Assy

1шт.

5

5191811

COUPLING

Assy, Serial Range: -C5279

1шт.

5

87381984

HYDRAULIC MANIFOLD

is faster 4bm13, Assy, Start Serial: D5279

1шт.

6

5190882

PUSH-PULL COUPLING

Incl. 21, Serial Range: -C5279

8шт.

6

87381944

COUPLING, QUICK, FEM

, Start Serial: C5279

8шт.

7

5191808

COUPLING

Assy, Serial Range: -C5279

1шт.

7

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, Assy, Start Serial: C5279

1шт.

8

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

16шт.

9

5195159

CONTROL VALVE

Assy

1шт.

10

5195165

HYD VALVE SECTION

Assy

4шт.

11

5195157

COVER

(12,13, 20)

1шт.

12

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.

13

5190751

O-RING,2.5mm Thk x 18mm ID

18 x 2.5

2шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

16

5195168

TIE-ROD,M8

3шт.

17

5191806

COUPLING

Assy, Serial Range: -C5279

1шт.

17

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, Assy, Start Serial: C5279

1шт.

18

5191803

COUPLING

Assy, Serial Range: -C5279

1шт.

18

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, Assy, Start Serial: C5279

1шт.

19

16100821

NUT,M8, Cl 10

3шт.

20

5195150

BACK-UP RING

2шт.

83984290

KIT

Seal & Ring, for 5190882 Coupler

1шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

22

47126963

SEAL

4шт.
