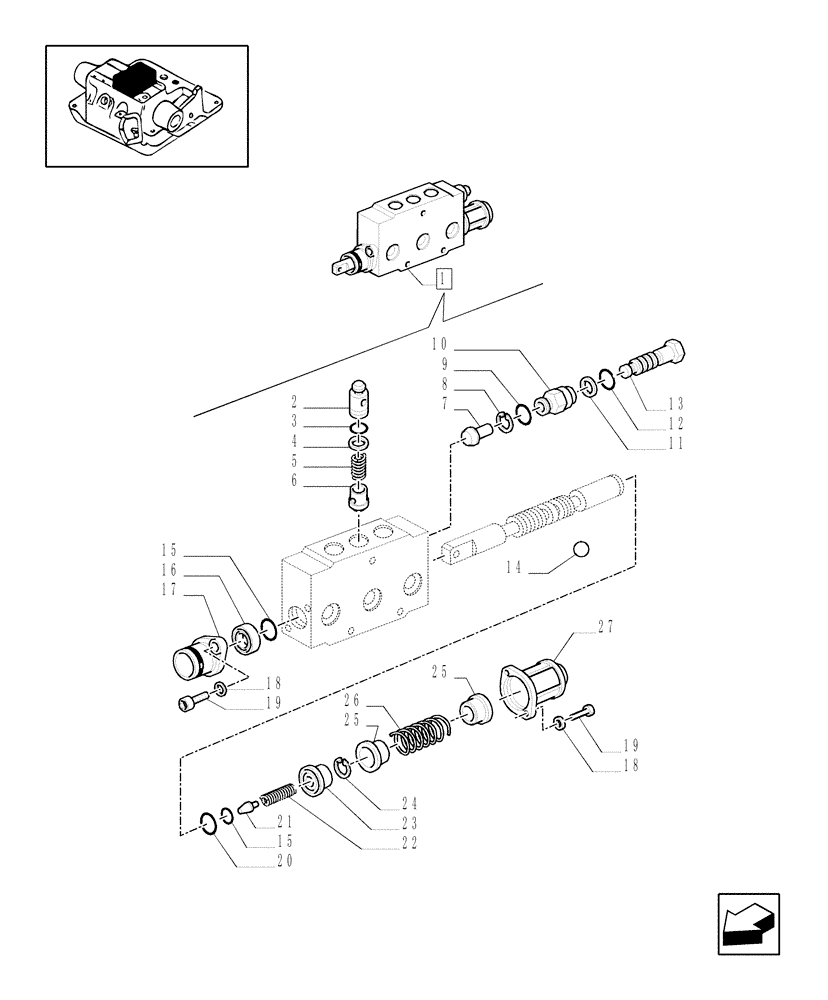

Запчасти Case IH MXM140 (1.82.7/01C) - SIMPLE/DOUBLE-ACTING EXTERNAL CONTROL VALVE BREAKDOWN - C5500 (07) - HYDRAULIC SYSTEM

1

5169037

CONTROL VALVE

1шт.

2

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

3

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

4

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

5

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

6

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

7

5136347

PIN,3.8mm OD x 15mm L

1шт.

8

11087871

CIRCLIP,M7

1шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

10

5136346

BODY,7/8" - 14

1шт.

11

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

12

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

13

5136348

PIN,10mm OD x 37mm L

1шт.

14

20419300

BALL,5.56mm OD, Gr 100

4шт.

15

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

16

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

17

5167124

SUPPORT

1шт.

18

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

19

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

20

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

21

5118358

PLUNGER

1шт.

22

5118362

SPRING,6.6mm OD x 33mm L

1шт.

23

5118360

BUSHING,16mm ID x 31mm OD x 16mm L

1шт.

24

5140823

SNAP RING,12.9mm ID x 17.1mm OD x 1mm Thk

1шт.

25

5118361

RETAINER,Spring

2шт.

26

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

27

5118364

COVER

1шт.
