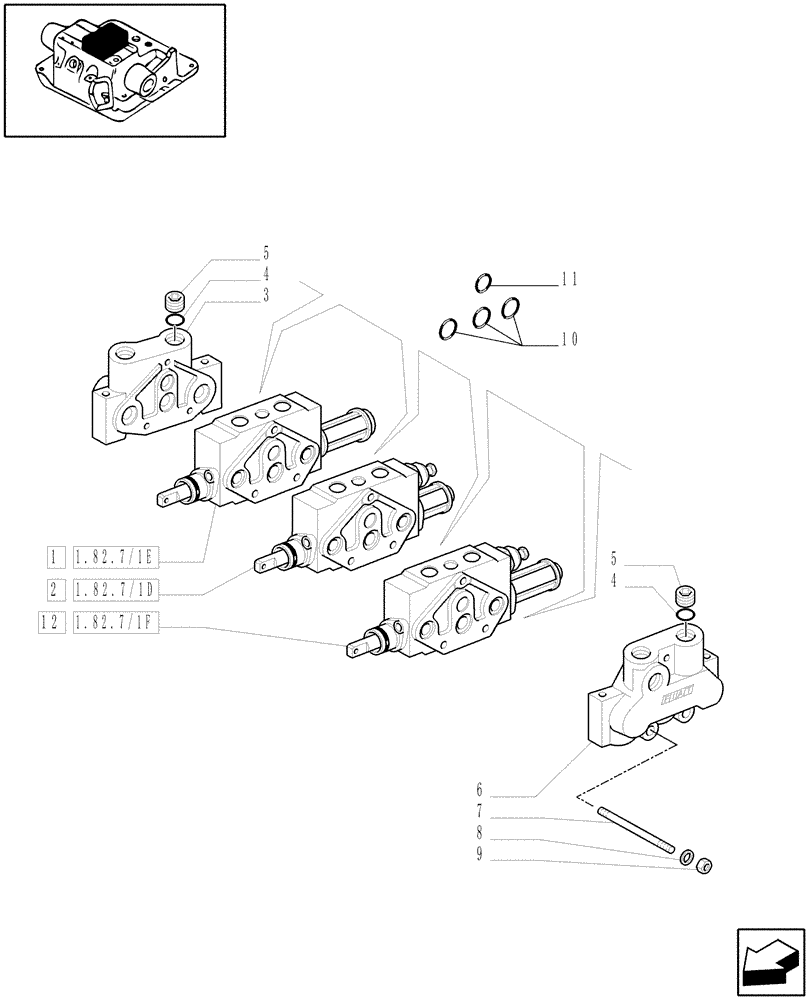

Запчасти Case IH MXM140 (1.82.7/01[04]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE) - D5500 (07) - HYDRAULIC SYSTEM

1

87396870

CONTROL VALVE

1шт.

2

87396839

CONTROL VALVE

1шт.

3

5151055

COVER

WAY IN

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

5

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

4шт.

6

5151056

HYD VALVE SECTION

WAY OUT

1шт.

7

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

8

10569471

LOCK WASHER,Lock, 3/8"

3шт.

9

5116857

NUT,3/8" - 24

6шт.

10

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

9шт.

11

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING 24X25X2,3

3шт.

12

87396858

CONTROL VALVE

1шт.
