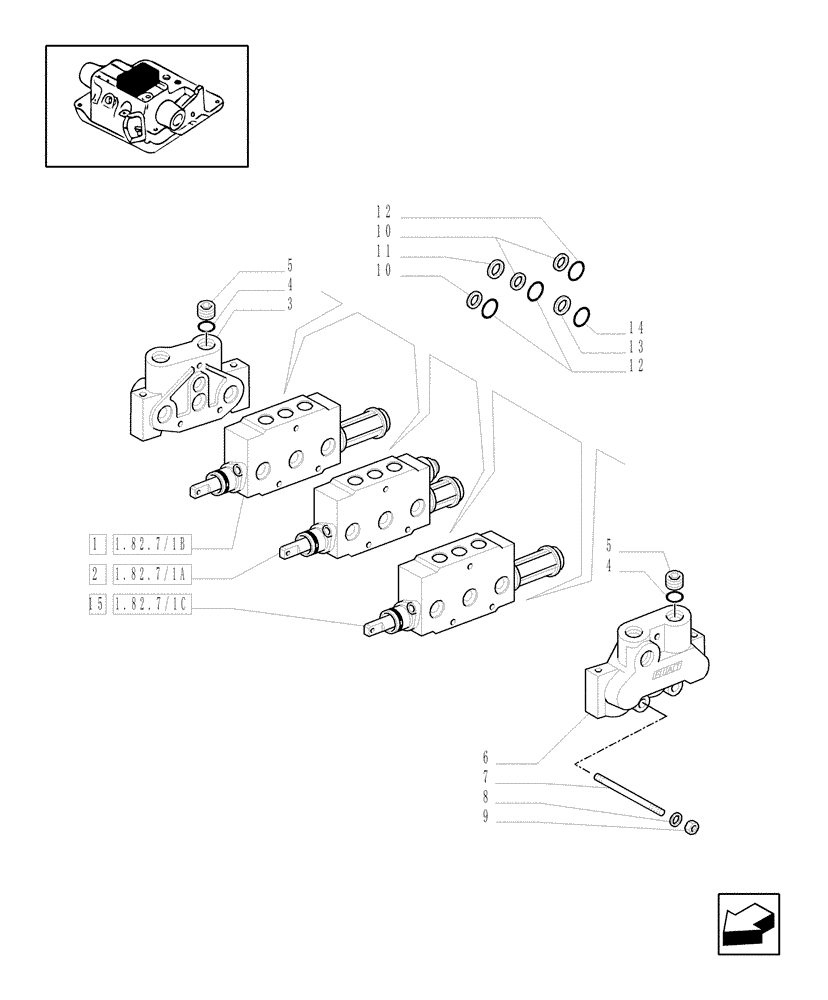

Запчасти Case IH MXM140 (1.82.7/01[02]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE) - C5500 (07) - HYDRAULIC SYSTEM

1

5166993

CONTROL VALVE

1шт.

2

5166992

CONTROL VALVE

1шт.

3

5151055

COVER

Inlet

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

5

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

4шт.

6

5151056

HYD VALVE SECTION

Outlet

1шт.

7

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

8

10569471

LOCK WASHER,Lock, 3/8"

3шт.

9

5116857

NUT,3/8" - 24

6шт.

10

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

17 x 18.5 x 2.1

9шт.

11

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

24 x 25 x 2.3

3шт.

12

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

9шт.

13

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

19.2 x 20.2 x 2.3

3шт.

14

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

15

5169037

CONTROL VALVE

1шт.
