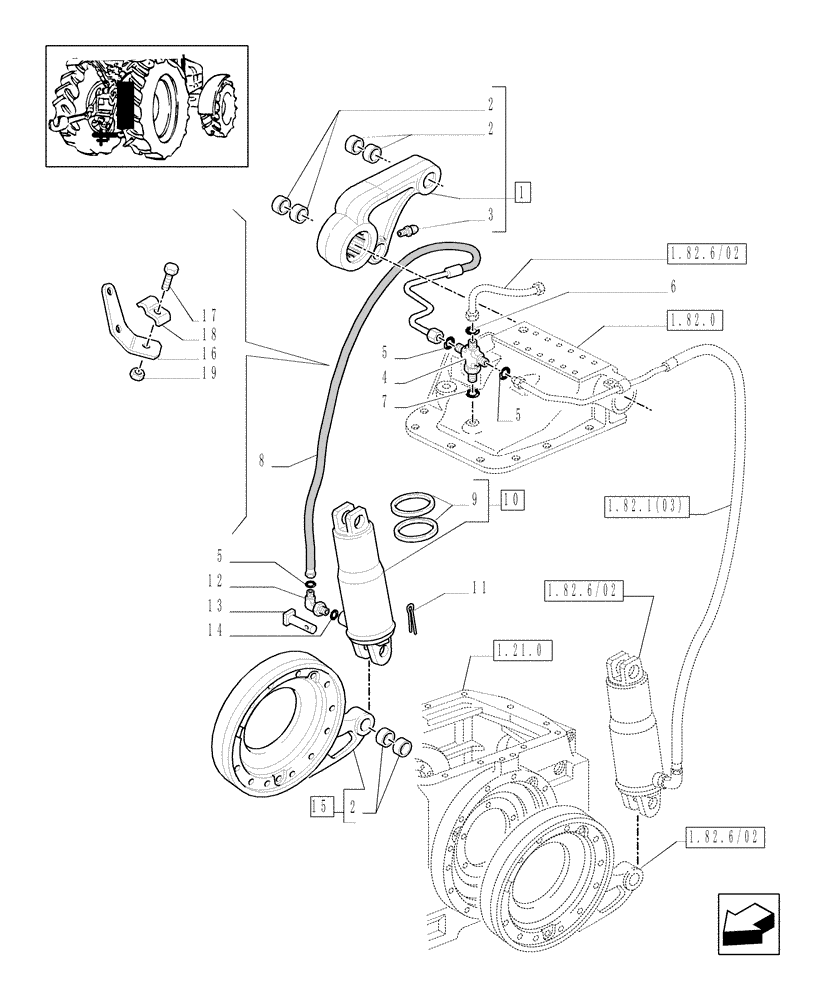

Запчасти Case IH MXM140 (1.82.6/03) - (VAR.783/1) RH LIFT ASSIST CYLINDER FOR TRACTOR W/1 LIFT ASSIST CYLINDER (07) - HYDRAULIC SYSTEM

1

87317740

LIFT ARM

RH

1шт.

2

5153140

BUSHING,25.25mm ID x 30mm OD x 20mm L

6шт.

3

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

4

5185051

HYD CONNECTOR

M18 x 1.5, Incl. 5, 6, 7

1шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

3шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

5189765

HYD TUBE

, Serial Range: -C5752

1шт.

8

87395281

PIPE

, Start Serial: D5752

1шт.

9

9966093

SEAL KIT

Gaskets

1шт.

10

47125823

LIFT CYLINDER

1шт.

11

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

12

5185050

ELBOW,M16 x 1.5 x 37mm

M16 x 1.5, Incl. 5, 14

1шт.

13

5146401

PIN

2шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

15

5176976

SPACER

RH

1шт.

16

5185427

BRACKET

1шт.

17

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

18

5156374

CLAMP

1шт.

19

12574221

NUT,M6 x 1, Cl 10

1шт.
