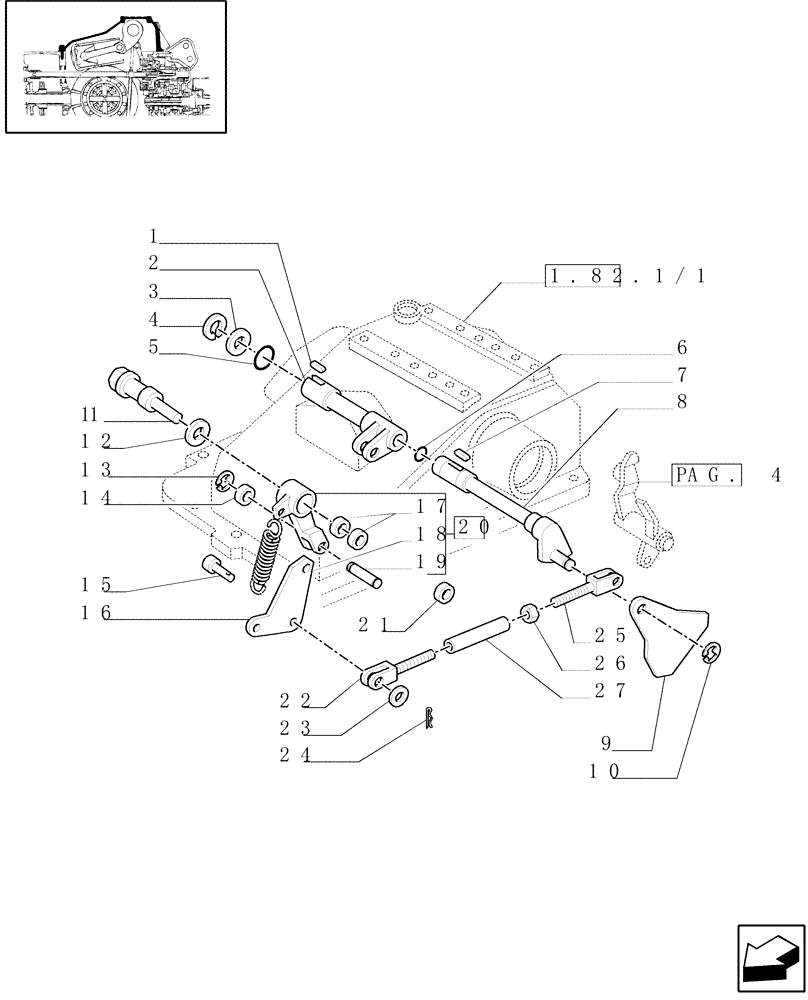

Запчасти Case IH MXM140 (1.82.5[02]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) /MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE) (07) - HYDRAULIC SYSTEM

1

14721010

KEY,4mm x 4mm x 14mm

1шт.

2

5165389

SHAFT

1шт.

3

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

4

11066276

SNAP RING,M14, Ext

1шт.

5

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

6

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

(M10.82 ID x 1.78 Thk)

1шт.

7

10617610

KEY,5mm x 5mm x 10mm

1шт.

8

5165385

SHAFT

1шт.

9

5117143

LEVER

1шт.

10

11065976

CIRCLIP,M10, Ext

1шт.

11

5150136

PIN,20.3mm OD x 96mm L

1шт.

12

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

13

11065676

SNAP RING,M8, Ext

1шт.

14

5111028

ROLLER,18mm OD x 10mm L

1шт.

15

10050811

PIN,8mm OD x 22mm L

1шт.

16

5148884

SPRING,Extension, 28mm OD x 84mm L

1шт.

17

5109160

ROLLER BEARING,Needle, 14mm ID x 20mm OD x 12mm W

2шт.

18

5150257

LEVER

1шт.

19

5117136

PIN,8mm OD x 42mm L

1шт.

20

5146567

ARM

1шт.

21

5143634

SPACER,11.2mm ID x 19mm OD x 5mmL

1шт.

22

11990774

YOKE,M8 (LH) x 8mm Hole Dia x 90mm L

1шт.

23

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

24

10734201

COTTER PIN,M2 x 12

1шт.

25

10008911

YOKE

1шт.

26

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

27

10092511

NUT,Adjusting, M8 x 1.25 x 80mm

1шт.
