Запчасти Case IH MXM140 (1.82.1/01A[03]) - LIFTER, DISTRIBUTOR AND VALVES BREAKDOWN (07) - HYDRAULIC SYSTEM

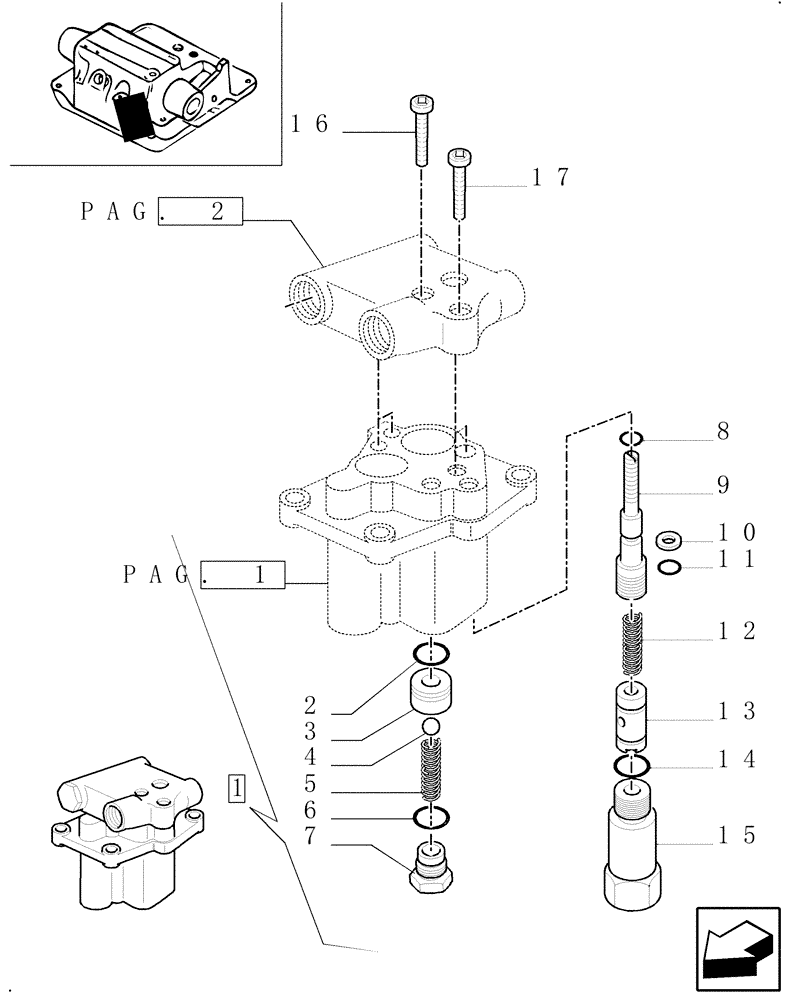

Схема запчастей Case IH MXM140 - (1.82.1/01A[03]) - LIFTER, DISTRIBUTOR AND VALVES BREAKDOWN (07) - HYDRAULIC SYSTEM
10
4
2
9
16
11
12
8
17
14
13
6
15
pag. 2
pag. 1
7
1
3
5

Артикул

Название

Примечание

Количество

1

5180937

CONTROL VALVE

Assy

1шт.

2

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

3

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

4

20063580

BALL,13.49mm OD, Gr 100

1шт.

5

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

6

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

7

5162608

PLUG,M24 x 1.5

1шт.

8

13397476

SNAP RING,M10.8, Int

1шт.

9

5155832

PIN,16mm OD x 81mm L

1шт.

10

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

11

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

12

5155844

SPRING,Compression, 11mm OD x 34mm L

1шт.

13

5163620

SPOOL

1шт.

14

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

15

5152541

VALVE PRESSURE RELIE

1шт.

16

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

17

14308321

HEX SOC SCREW,M10 x 1.25 x 70mm, Cl 8.8

1шт.

Выбрано товаров: 17
