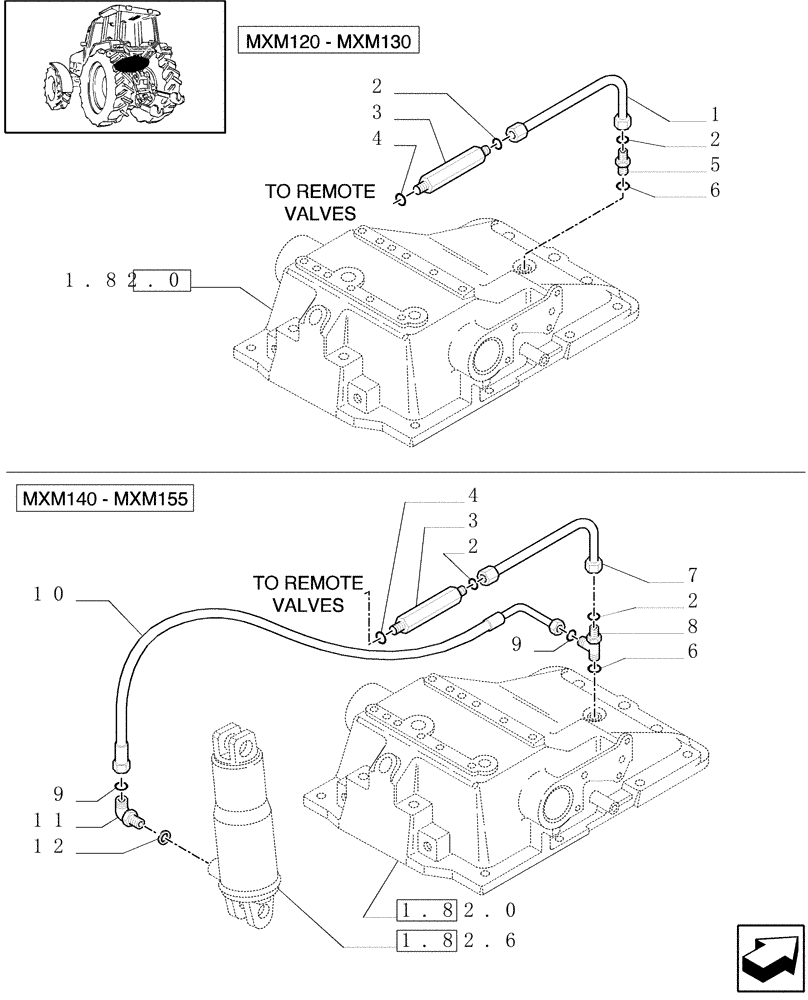

Запчасти Case IH MXM140 (1.82.1[03]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

5184821

HYD TUBE

1шт.

2

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

5185048

HYD CONNECTOR

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

5184843

RIGID TUBE

1шт.

8

5185049

TEE,1"-14 ORFS x 11/16-16 ORFS x M18 x 1.5 ORB

1шт.

9

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

W/112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130

1шт.

10

5184845

FLEXIBLE HOSE

1шт.

W/112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130

1шт.

11

5185050

ELBOW,M16 x 1.5 x 37mm

1шт.

W/112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130

1шт.

12

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

W/112" Bar Axle F/Cast Wheels (Heavy Duty Reduction) is used for MXM120, MXM130

1шт.
