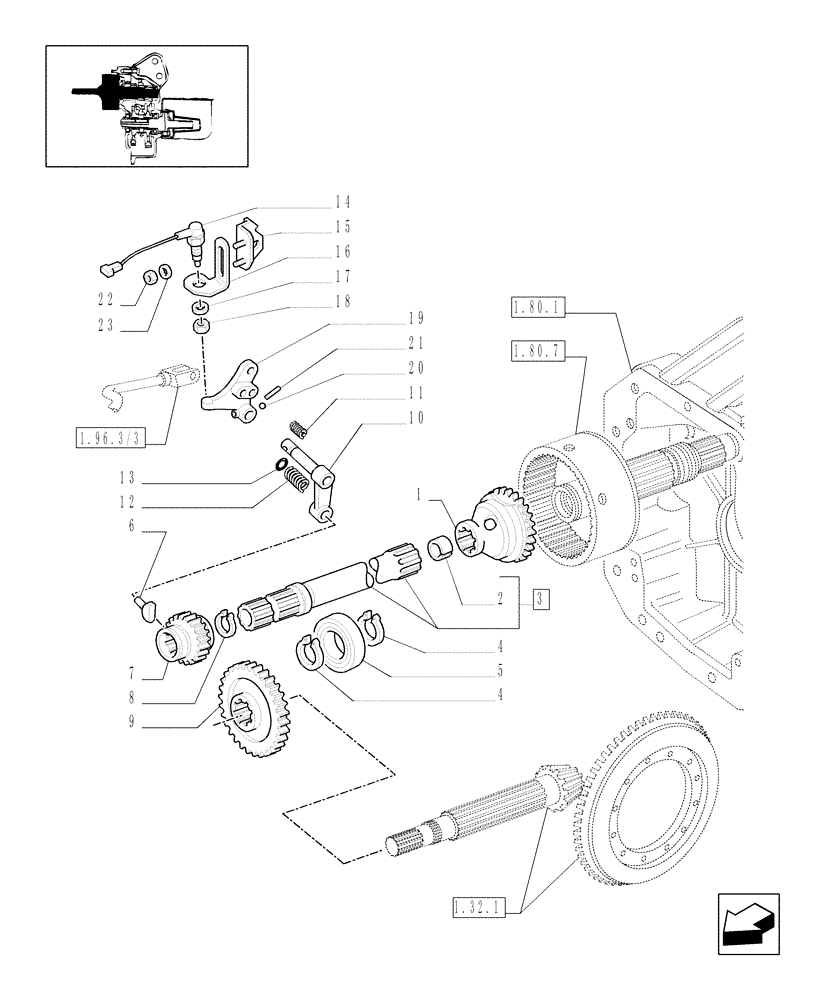

Запчасти Case IH MXM140 (1.80.7/05) - (VAR.847) SYNCHRO MESH GEARED POWER TAKE-OFF (07) - HYDRAULIC SYSTEM

1

5165074

HUB

1шт.

2

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

3

5166835

SHAFT

Assy

1шт.

4

11062476

SNAP RING,M90, Int

2шт.

5

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

6

4984096

CONTROL LEVER,10mm OD x 40mm L

1шт.

7

5153151

GEAR,18T, 24T

1шт.

8

11069376

SNAP RING,M50, Ext

3шт.

9

5146032

DRIVING GEAR

1шт.

10

5153153

LEVER

1шт.

11

4994342

SPRING,8mm OD x 30mm OAL

1шт.

12

5139088

SPRING,22mm OD x 42mm L

1шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

14

82014329

SWITCH

Ground Drive PTO Interlock

1шт.

15

5155347

SUPPORT

1шт.

16

5155349

BRACKET

1шт.

17

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

18

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

1шт.

19

5155339

LEVER

1шт.

20

20063390

BALL,8.73mm OD

D = 11/32"

1шт.

21

13942670

ROLL PIN,M6 x 32, Coiled

1шт.

22

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

23

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

2шт.
