Запчасти Case IH MXM140 (1.40.8/01) - (VAR.518) CLASS 4 4WD FRONT AXLE WITH "TERRALOCK" - BOX (04) - FRONT AXLE & STEERING

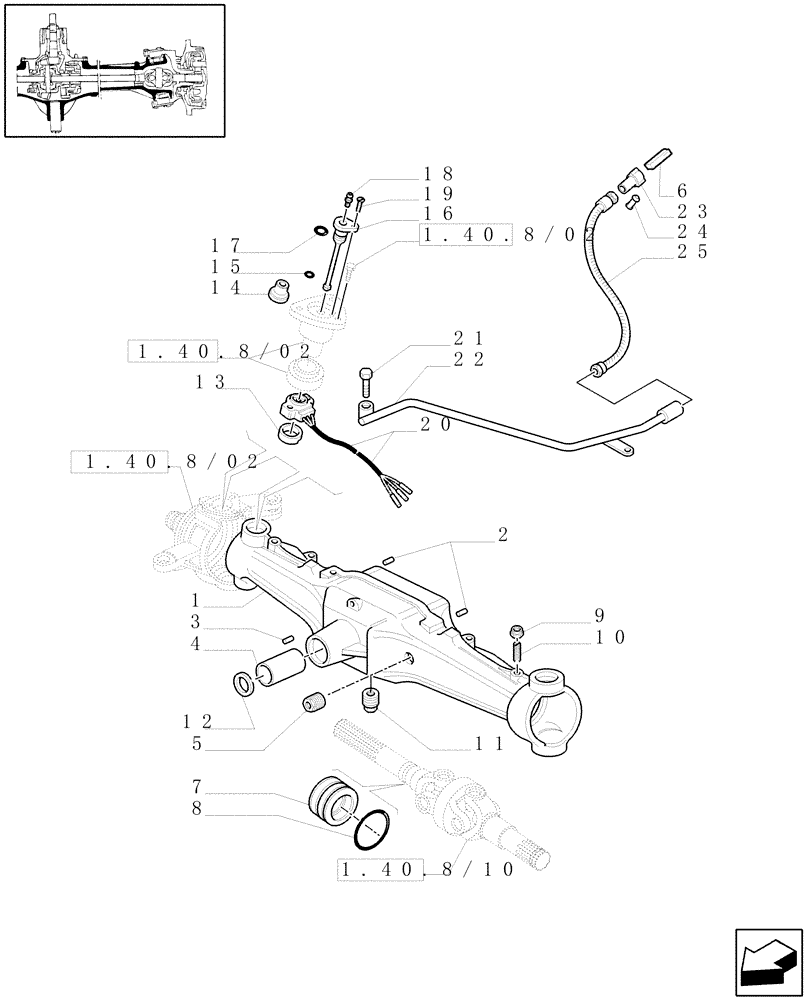

Схема запчастей Case IH MXM140 - (1.40.8/01) - (VAR.518) CLASS 4 4WD FRONT AXLE WITH "TERRALOCK" - BOX (04) - FRONT AXLE & STEERING
1
3
14
2
24
25
13
1.40.8/02
1.40.8/02
1.40.8/02
1.40.8/10
16
19
22
11
15
18
5
6
4
20
10
9
12
8
7
21
17
23

Артикул

Название

Примечание

Количество

1

47123961

AXLE HOUSING

Incl. 2, 3, 4, Serial Range: -C5196

1шт.

1

87309483

AXLE HOUSING

Incl. 2, 3, 4, Serial Range: D5196-C5731

1шт.

1

87652099

AXLE HOUSING

Incl. 2-4, Start Serial: D5731

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140170

PIN

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

82918451

SPACER

1шт.

7

5134277

SLEEVE

, Serial Range: -C5243

2шт.

7

87371236

BUSHING,68mm ID x 95mm OD x 49mm L

, Start Serial: D5243

2шт.

8

14461180

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

, Serial Range: -C5243

2шт.

8

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

, Start Serial: D5243

2шт.

9

16101524

NUT,M12 x 1.25, Cl 10

2шт.

10

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

1шт.

12

5140888

RING

1шт.

13

5168958

SUPPORT

, Serial Range: -C5196

1шт.

14

5175211

BUSHING,10mm ID x 23mm OD x 17mm L

, Serial Range: -C5196

1шт.

15

14452780

O-RING,0.239" ID x 0.07" Width

, Serial Range: -C5196

1шт.

16

5178653

PIN,9mm OD x 81mm L

, Serial Range: -C5196

1шт.

17

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

, Serial Range: -C5196

1шт.

18

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

, Serial Range: -C5196

1шт.

19

10384911

SCREW,Slotted Countersunk, M5 x 12mm

M5 x 12, Serial Range: -C5196

1шт.

20

82019691

SENSOR

Steering Angle, Serial Range: -C5196

1шт.

21

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

22

5192696

TUBE

1шт.

23

82918426

ELEC CONNECTOR,Female

Incl. Ref. 24

1шт.

24

82918419

PLUG

1шт.

25

82016109

FLEXIBLE SHEATH

1шт.

Выбрано товаров: 29
