Запчасти Case IH MXM140 (1.40.7/05[01]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - SUPPORT (04) - FRONT AXLE & STEERING

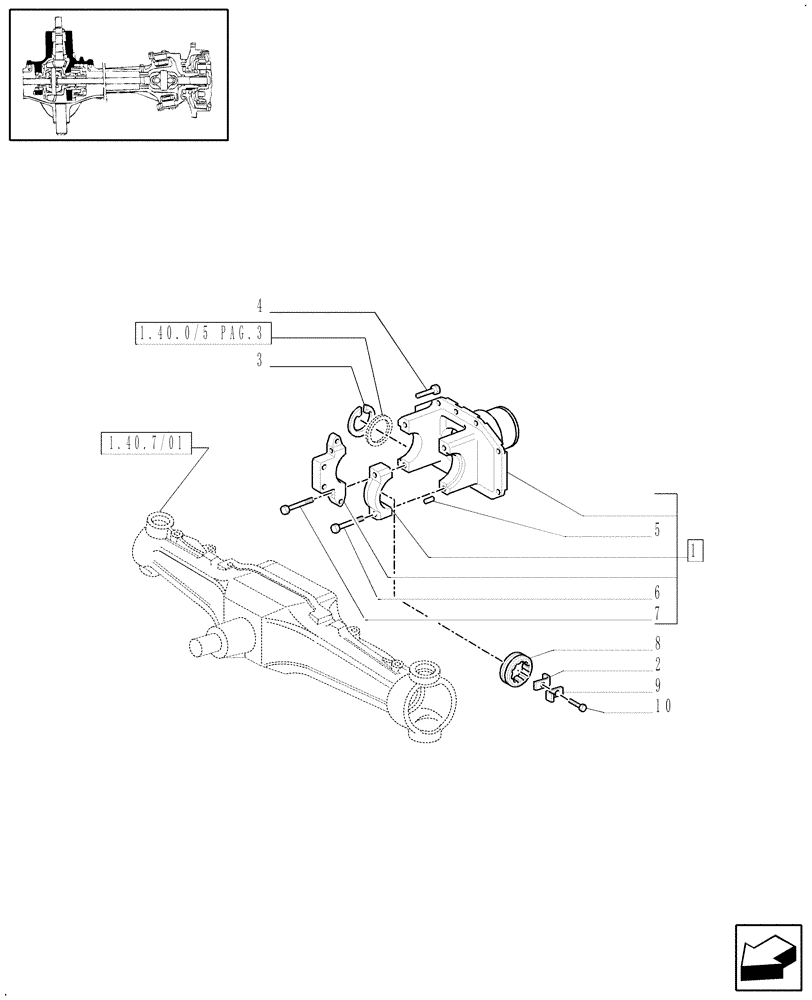

Схема запчастей Case IH MXM140 - (1.40.7/05[01]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - SUPPORT (04) - FRONT AXLE & STEERING
8
10
3
1.40.0/5 pag.3
5
6
7
4
1.40.7/01
1
2
9

Артикул

Название

Примечание

Количество

1

5190845

SUPPORT

1шт.

2

4996751

PLATE

1шт.

3

11062676

SNAP RING,M95, Int

1шт.

4

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

16шт.

4

14360524

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

4966244

PIN,5mm OD x 15mm L

M5 x 15

4шт.

6

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

7

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

M12 x 1.25 x 78

2шт.

8

4996750

RING NUT,M100 x 2

M100 x 13

1шт.

9

562659

PLATE

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 11
