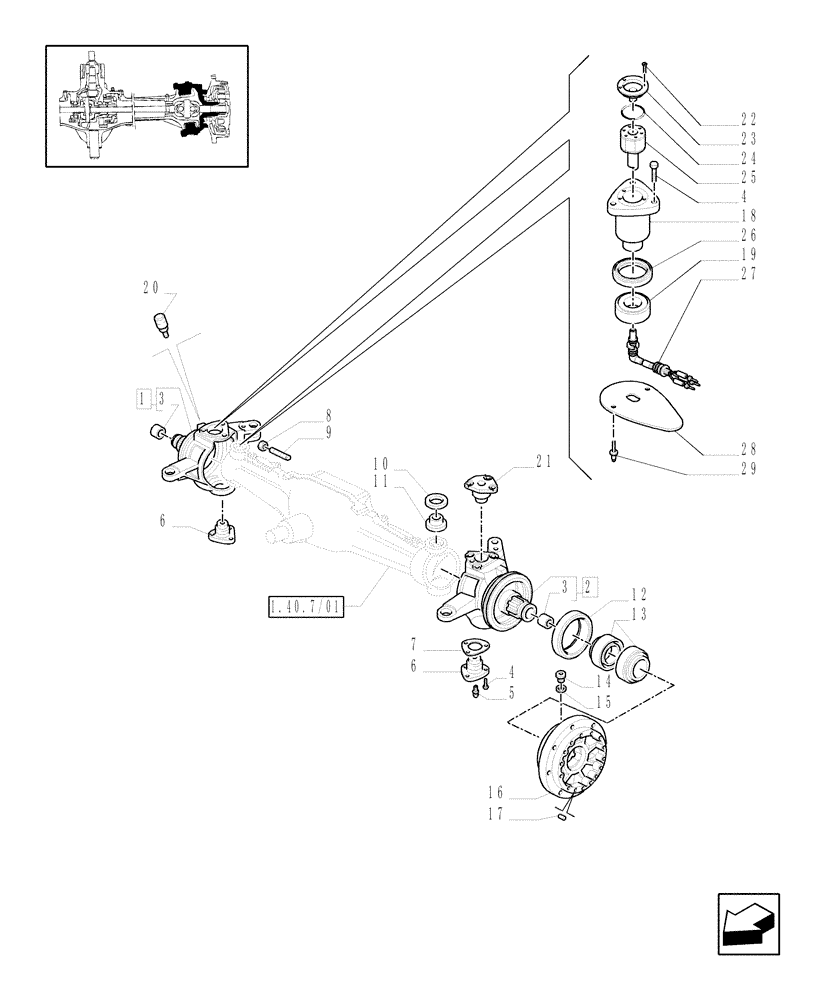

Запчасти Case IH MXM140 (1.40.7/02[01A]) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - STEERING PIVOT PINS - D5196 (04) - FRONT AXLE & STEERING

1

5186530

STUB AXLE/STEERING S

RH

1шт.

2

5186531

STUB AXLE/STEERING S

LH

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.

4

14254534

BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9

12шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

3шт.

5

5187455

LUBE NIPPLE

1шт.

6

5137138

BALL STUD

BALL PIN

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

87751871

ADJUSTMENT SCREW,M18 x 67mm, Cl 10.9

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

4шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

5178141

SEAL

190 x 220 x 14.5-18

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538 x 158.750 x 23.02

4шт.

14

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

15

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

16

5191786

HUB

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

87309308

BALL STUD

BALL PIN

1шт.

19

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

20

13413290

BREATHER

2шт.

21

5183085

PIN

1шт.

22

10384911

SCREW,Slotted Countersunk, M5 x 12mm

M5 x 12

3шт.

23

87309292

PIN

1шт.

24

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

25

87303761

SENSOR

Steering

1шт.

26

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

27

87303770

ELEC CONNECTOR

1шт.

28

87315098

SHIELD

1шт.

29

14643091

RIVET

2шт.
