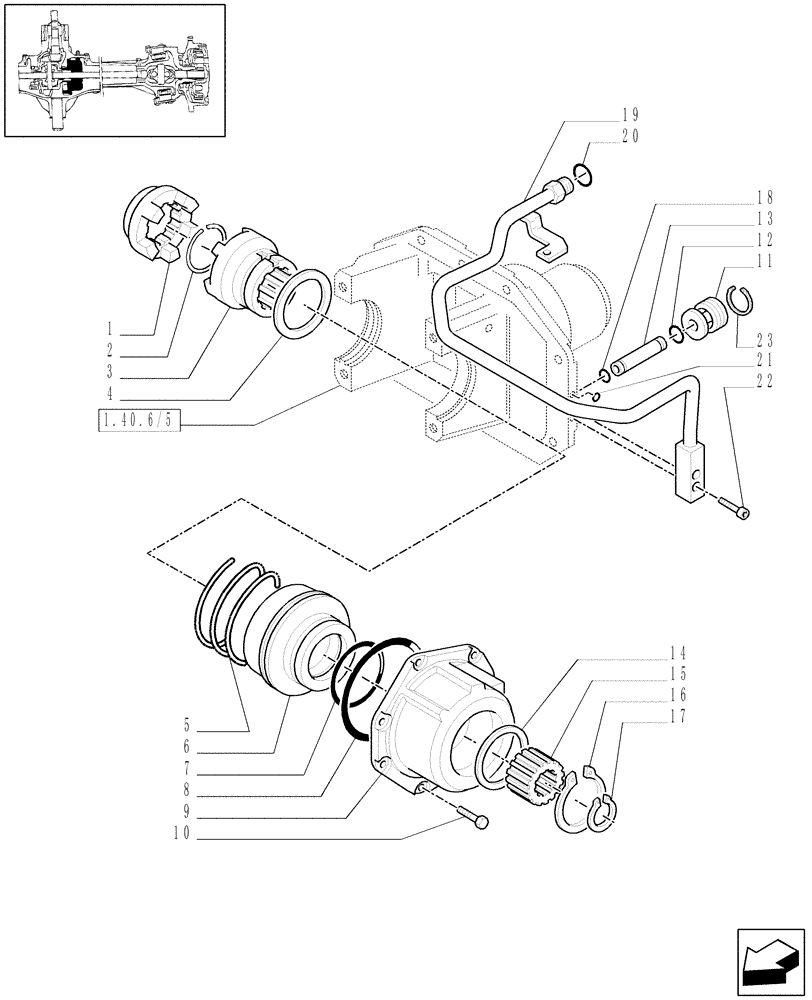

Запчасти Case IH MXM140 (1.40.6/09[01]) - (VAR.463) 4WD FRONT AXLE WITH SUSPENSIONS, FULL POWER SHIFT - HYDRAULIC DIFFERENTIAL LOCK (04) - FRONT AXLE & STEERING

1

5153349

SLEEVE

1шт.

2

5153351

SNAP RING,55.5mm ID

D = 3 x 54

1шт.

3

5153350

SLEEVE,22T

1шт.

4

5153392

THRUST WASHER,72.5mm ID x 90mm OD x 2.8mm Thk

1шт.

5

5154040

SPRING

1шт.

6

5155169

PISTON

1шт.

7

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

8

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

9

5155167

HOUSING

1шт.

10

14233824

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8

6шт.

11

5196677

PLUG

1шт.

12

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

13

5182961

TUBE

1шт.

14

5153391

THRUST WASHER,67mm ID x 83mm OD x 3mm Thk

1шт.

15

5153390

HUB

1шт.

16

11070376

SNAP RING,M70, Ext

1шт.

17

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

18

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

2шт.

19

5188463

TUBE

1шт.

20

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

21

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

(M10.82 ID x 1.78 Thk)

1шт.

22

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

23

84144333

SNAP RING

1шт.
