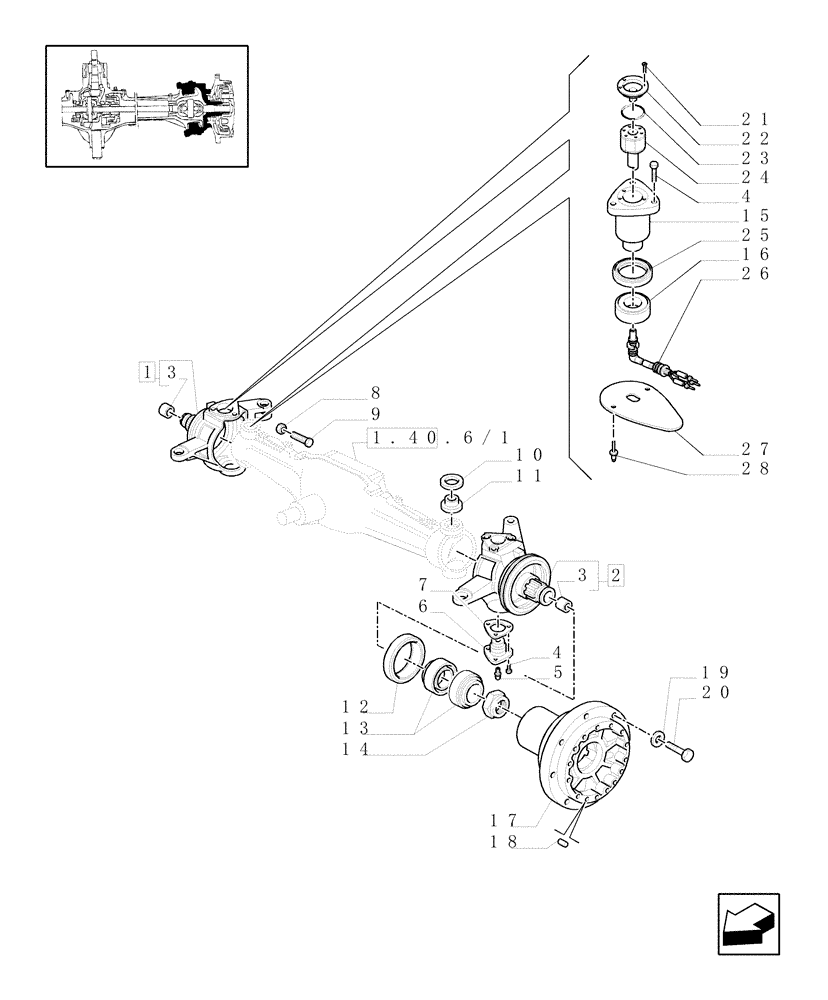

Запчасти Case IH MXM140 (1.40.6/02[01A]) - (VAR.463) 4WD FRONT AXLE WITH SUSPENSIONS, FULL POWER SHIFT - STEERING PIVOT PINS AND HUBS - D5196 (04) - FRONT AXLE & STEERING

1

5186526

STUB AXLE/STEERING S

RH

1шт.

2

5186527

STUB AXLE/STEERING S

LH

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

4

14254431

BOLT,Hex, M14 x 1.5 x 30mm, Cl 10.9

12шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

3шт.

6

5137138

BALL STUD

BALL PIN

3шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

5179447

SCREW

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

4шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

5177708

SEAL

165 x 190 x 15.5-17

2шт.

13

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

14

5142020

NUT,Hex, M75 x 2

M75 x 20

2шт.

15

87309308

BALL STUD

BALL PIN

1шт.

16

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

17

5191785

HUB

, Serial Range: -C5201

2шт.

17

87341362

HUB

, Start Serial: D5201

2шт.

18

4985063

DOWEL,12mm OD x 20mm L

4шт.

19

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

20

11390534

BOLT,Hex, M16 x 1.5 x 40mm, Cl 10.9

16шт.

21

10384911

SCREW,Slotted Countersunk, M5 x 12mm

M5 x 12

3шт.

22

87309292

PIN

1шт.

23

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

24

87303761

SENSOR

Steering

1шт.

25

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

26

87303770

ELEC CONNECTOR

1шт.

27

87315098

SHIELD

1шт.

28

14643091

RIVET

2шт.
