(1.40.5/10A) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - SPS - ARTICULATED HALF-AXLE

Запчасти Case IH MXM140 (1.40.5/10A) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - SPS - ARTICULATED HALF-AXLE (04) - FRONT AXLE & STEERING

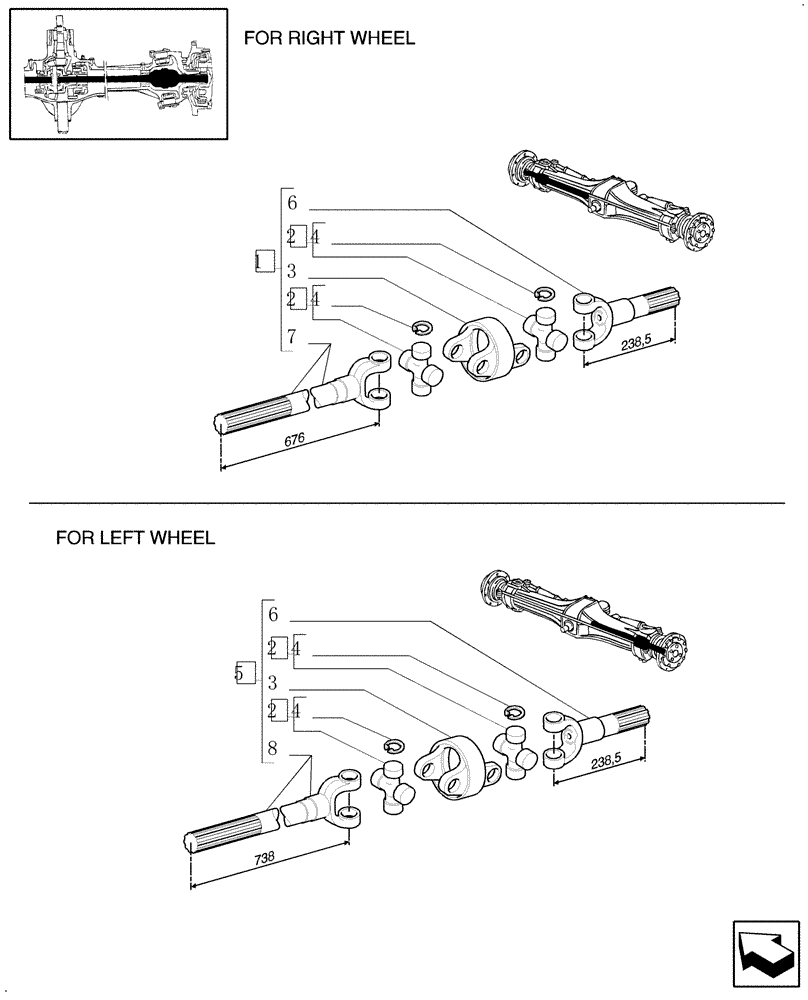

Схема запчастей Case IH MXM140 - (1.40.5/10A) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - SPS - ARTICULATED HALF-AXLE (04) - FRONT AXLE & STEERING
3
4
2
4
2
3
2
7
1
6
2
8
6
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186701

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5191547

U-JOINT SPIDER

2шт.

3

5191550

YOKE

1шт.

4

5191548

CIRCLIP

8шт.

5

5186702

AXLE-SHAFT, ARTICULA

LH

1шт.

6

5191584

SHAFT

Outer, Short

1шт.

7

5191587

AXLE-SHAFT, ARTICULA

Inner, Long, RH

1шт.

8

5191588

AXLE-SHAFT, ARTICULA

Inner, Long, LH

1шт.
