Запчасти Case IH MXM140 (1.40.4/13[01]) - (VAR.452) 4WD FRONT AXLE WITH BRAKES FOR TERRALOCK - BRAKES (04) - FRONT AXLE & STEERING

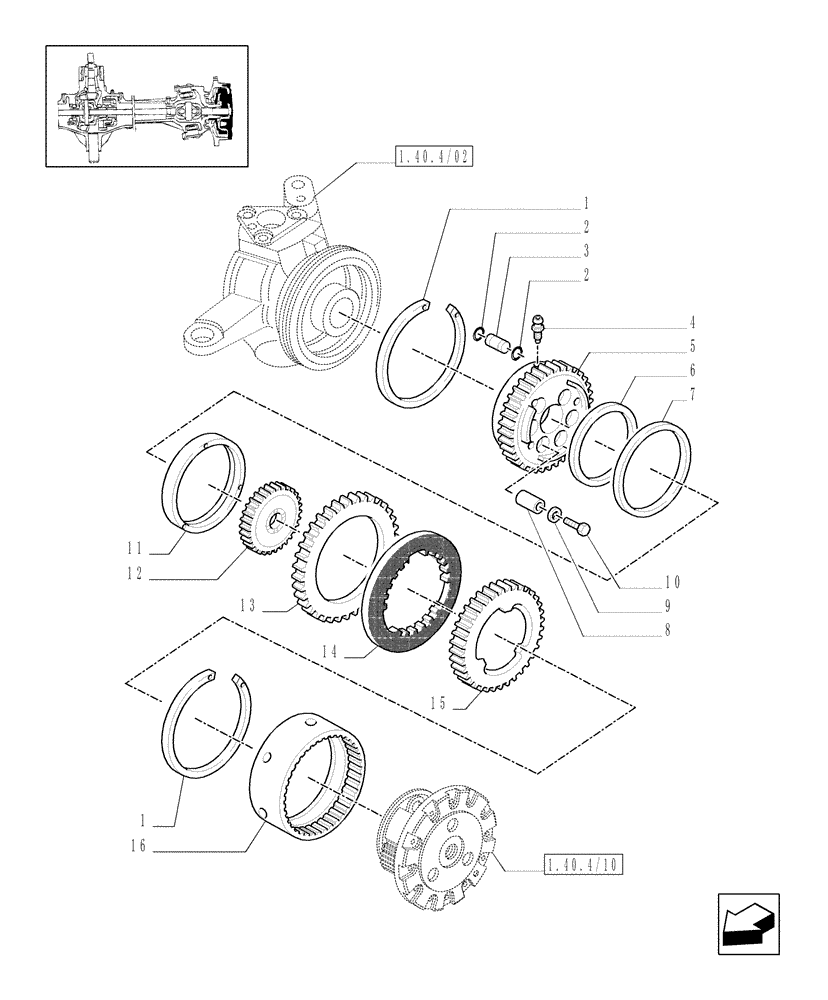

Схема запчастей Case IH MXM140 - (1.40.4/13[01]) - (VAR.452) 4WD FRONT AXLE WITH BRAKES FOR TERRALOCK - BRAKES (04) - FRONT AXLE & STEERING
12
2
3
5
1
9
1.40.4/02
1.40.4/10
1
10
6
15
13
8
7
11
2
14
16
4

Артикул

Название

Примечание

Количество

1

5175606

RING

4шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

4шт.

3

5173504

PAWL,16mm OD x 25mm L

2шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5181755

HOUSING

2шт.

6

5181734

PISTON RING

160.6 x 167.4 x 3.4

2шт.

7

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

193.6 x 200.4 x 3.4

2шт.

8

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

12шт.

9

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

12шт.

10

16331930

BOLT,Hex, M14 x 1.5 x 55mm

12шт.

11

5181732

PISTON,167.23mm ID x 193.77mm OD x 13mm Thk

2шт.

12

5178475

HUB

2шт.

13

5171917

BRAKE DISC,150mm ID x 227mm OD x 4.95mm Thk

2шт.

14

5175567

BRAKE DISC,213.00mm OD

2шт.

15

5181748

WEAR PLATE,68T

2шт.

16

5191771

RING GEAR,248.00mm OD

OD = 248 mm

2шт.

Выбрано товаров: 16
