Запчасти Case IH MXM140 (1.40.4/02[01]) - (VAR.452) 4WD FRONT AXLE WITH BRAKES FOR TERRALOCK - STEERING PIVOT PINS AND HUBS (04) - FRONT AXLE & STEERING

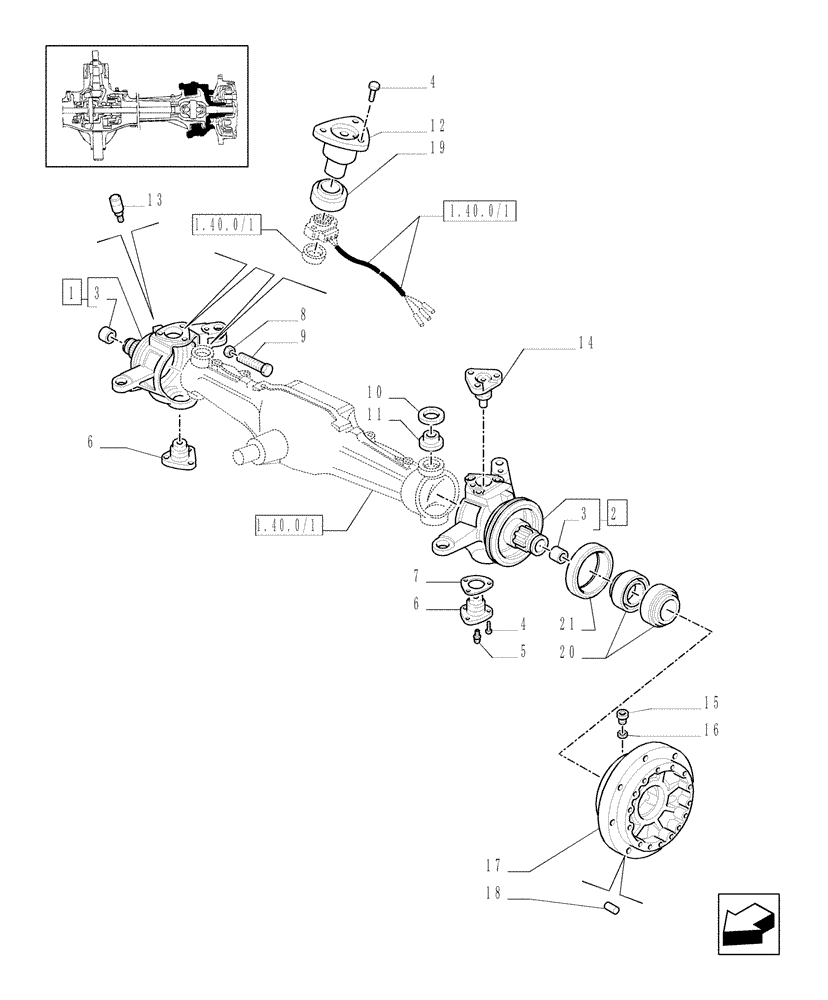

Схема запчастей Case IH MXM140 - (1.40.4/02[01]) - (VAR.452) 4WD FRONT AXLE WITH BRAKES FOR TERRALOCK - STEERING PIVOT PINS AND HUBS (04) - FRONT AXLE & STEERING
6
1.40.0/1
19
4
8
1
9
7
12
6
15
4
1.40.0/1
18
11
20
14
13
2
17
10
1.40.0/1
3
5
21
3
16

Артикул

Название

Примечание

Количество

1

5181781

STEERING KNUCKLE,RH

RH

1шт.

2

5181778

STEERING KNUCKLE

LH

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

4

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

6шт.

5

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.

5

5187455

LUBE NIPPLE

1шт.

6

5137239

BALL STUD

BALL PIN

2шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

5173991

STOP,Steering

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

4шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

47133250

PIN

1шт.

13

13413290

BREATHER

2шт.

14

5191228

PIN

1шт.

15

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

16

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

17

5191786

HUB

, Serial Range: -C5189

2шт.

17

87327401

HUB

, Start Serial: D5189

2шт.

18

4985063

DOWEL,12mm OD x 20mm L

2шт.

19

5169910

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

64.292 mm ID

1шт.

20

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538 x 158.750 x 23.02

4шт.

21

5178141

SEAL

190 x 220 x 14.5-18, Serial Range: -C5189

2шт.

21

5183844

SEAL

190 x 220 x 21, Start Serial: D5189

2шт.

Выбрано товаров: 26
