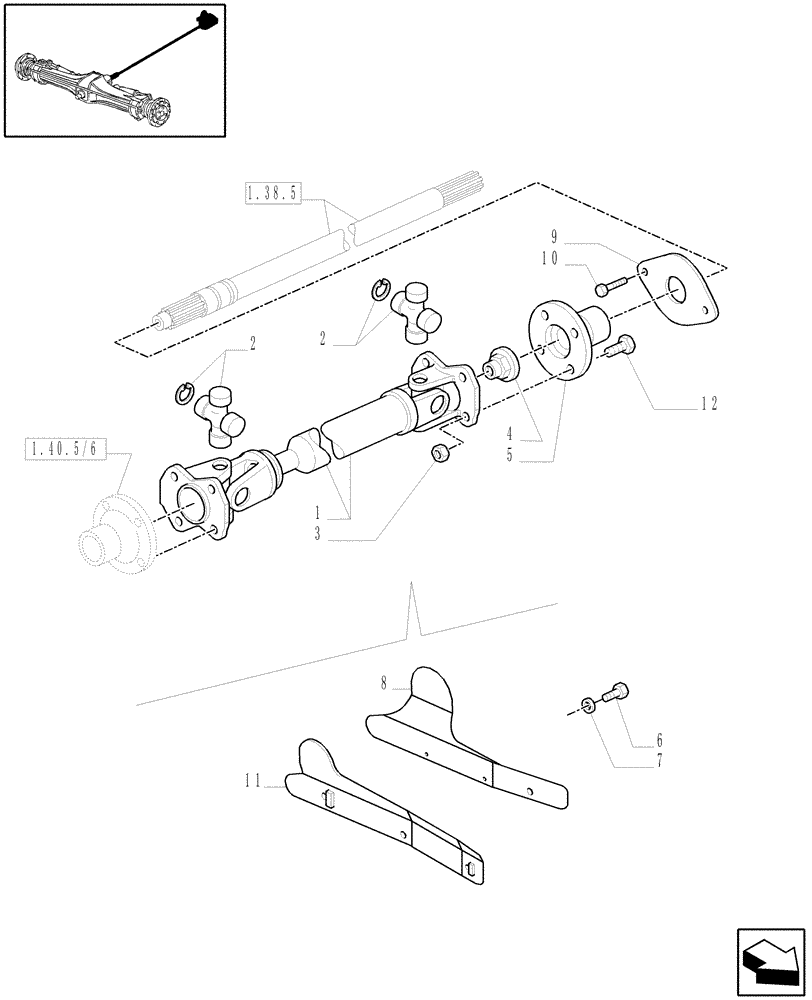

Запчасти Case IH MXM140 (1.38.5/05) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, SPS - DRIVE SHAFT (04) - FRONT AXLE & STEERING

1

87541257

DRIVE SHAFT

1шт.

2

87530319

SPIDER

2шт.

3

82936516

LOCK NUT,7/16"-20

8шт.

4

5111953

NUT,M24 x 1.5

M24 x 20

1шт.

5

5190331

FLANGE

Incl. 12

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

6

80043140

BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

7

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

8

82022171

GUARD

LH

1шт.

9

5186750

FLANGE

1шт.

10

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

82021896

GUARD

RH

1шт.

12

5190329

SCREW

, Serial Range: -C5536

4шт.

12

87601117

BOLT,Hex, 7/16" - 20 x 1-1/4"

, Start Serial: D5536

4шт.
