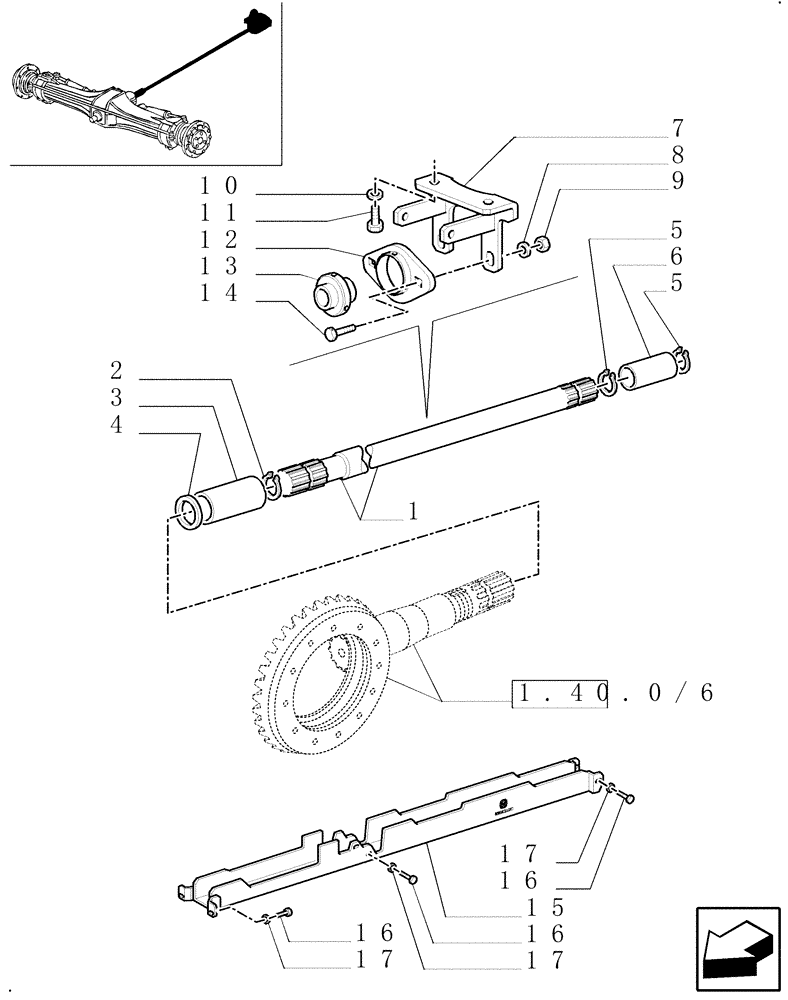

Запчасти Case IH MXM140 (1.38.5/02) - (STD+VAR.272) HI-LO - FRONT AXLE PROPELLER SHAFT (4WD) (04) - FRONT AXLE & STEERING

1

5168037

DRIVE SHAFT

1шт.

2

370003

SNAP RING,M30, External

1шт.

3

5150124

SLEEVE,14T

1шт.

4

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

1шт.

4

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

1шт.

4

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

1шт.

4

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

1шт.

5

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

6

4994076

SLEEVE,12T

1шт.

7

5170368

SUPPORT

1шт.

8

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

9

12164714

NUT,M10 x 1.25, Cl 8

2шт.

10

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

11

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

5174572

KIT

1шт.

13

5174571

FLANGED BEARING,35mm ID

1шт.

14

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

5184377

SHIELD

1шт.

16

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

M8 x 1.25 x 16

6шт.

17

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.
