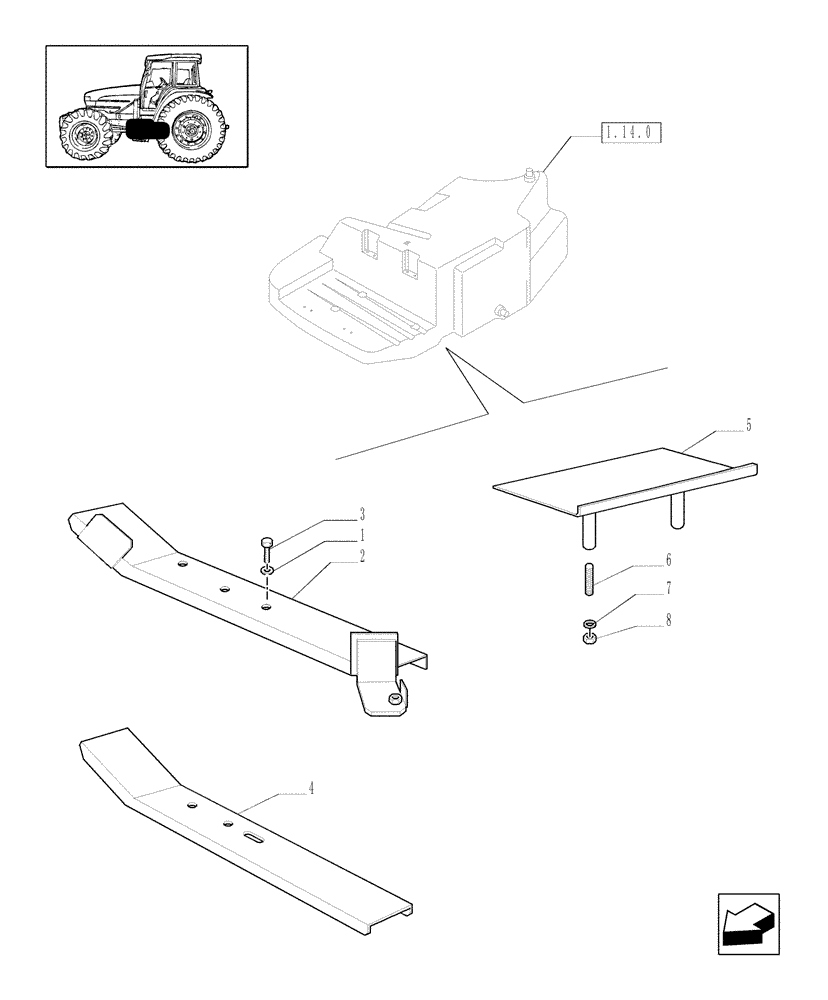

Запчасти Case IH MXM130 (1.14.7[02]) - FUEL TANK SUPPORT (02) - ENGINE EQUIPMENT

1

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

2

82030453

SUPPORT

1шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

82028782

SUPPORT

1шт.

5

82027187

SUPPORT

3шт.

6

82008683

STUD,M10 x 1.25 x 40mm L

2шт.

7

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

8

12574511

LOCK NUT,M10 x 1.25, Cl 8

1шт.
