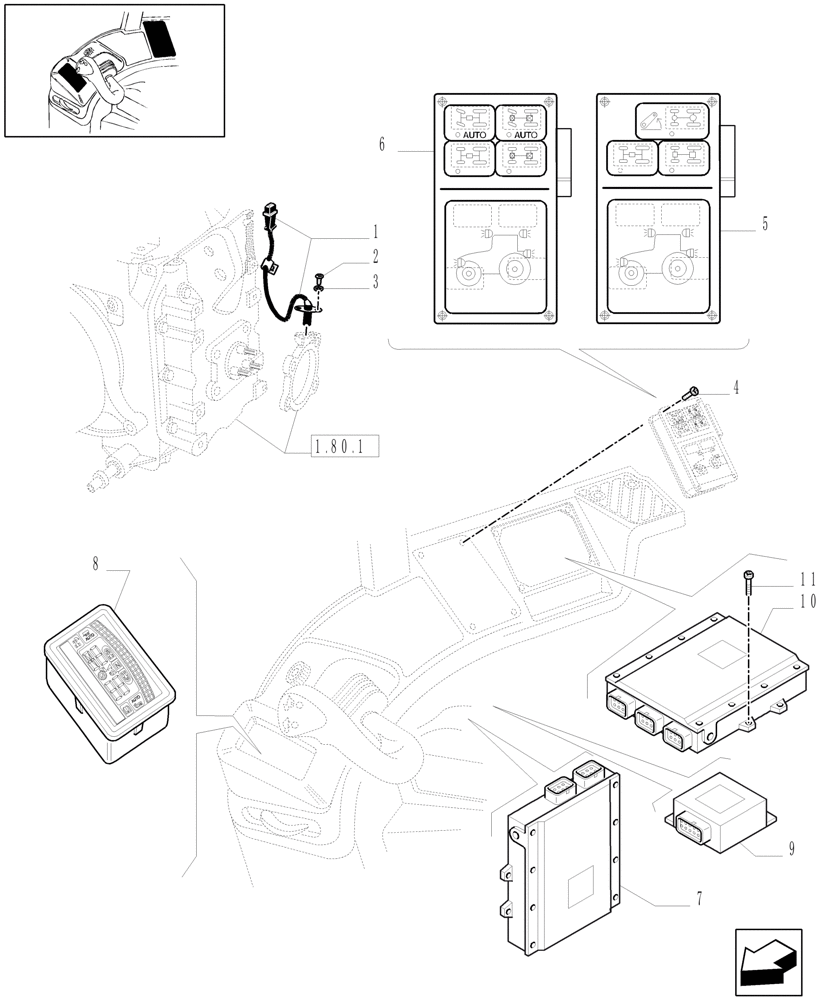

Запчасти Case IH MXM130 (1.97.1[02]) - ELECTRONIC CONTROL UNIT - TRANSMISSION CONTROL MODULE - D5345 (10) - OPERATORS PLATFORM/CAB

1

87564763

SENSOR

1шт.

2

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

3

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

4

15691301

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 13mm

4шт.

5

87374230

CORE-ELECTRONIC CONT

Worklamps, 2WD

1шт.

Electronic Management Unit, Touch Panel for Worklamps (W/CAB)

1шт.

6

87374231

ECU

4WD

1шт.

Electronic Management Unit L/Super Steer

1шт.

7

47130674

ECU

MXM120, MXM130, MXM140, MXM155

1шт.

Controller Full Power Shift 18 x 6 (40 KPH) Equip. 281, Electronic Module

1шт.

7

47130674R

REMAN ELECT CONTROL

Reman for New P/N 47130674

1шт.

7

47130674C

CORE-ELECTRONIC CONT

Return Number

1шт.

7

47130664

ECU

1шт.

Controller Full Power Shift 17 x 6 (30 KPH) Equip. 281, Electronic Module

1шт.

7

47130684

ECU

MXM175, MXM190

1шт.

Controller Full Power Shift 19 x 6 (50 KPH) Equip. 147, Electronic Module

1шт.

7

47133124

ECU

MXM175, MXM190

1шт.

Controller Full Power Shift (30 KPH), Japan only, Electronic Module, Equip. 570

1шт.

7

87528659

ECU

MXM175, MXM190

1шт.

Controller Full Power Shift (40 KPH), Energy Saving, Electronic Module, Equip. 571

1шт.

8

87569994

DISPLAY

MXM120, MXM130, MXM140, MXM155

1шт.

8

47130171

DISPLAY

MXM175, MXM190, DISPLAY OF GEARS - ADVANCED, Serial Range: -C5513

1шт.

Semi Power Shift (30 KPH 4WD) Equip. 147, Full Power Shift 18 x 6 (40 KPH 4WD) and 17 x 6 (30 KPH) Equip. 281 is used for MXM120, MXM130, MXM140, MXM155

1шт.

8

87569995

DISPLAY

, Start Serial: D5513

1шт.

Semi Power Shift (30 KPH 4WD) Equip. 147, Full Power Shift 18 x 6 (40 KPH 4WD) and 17 x 6 (30 KPH) Equip. 281 is used for MXM120, MXM130, MXM140, MXM155

1шт.

9

82033641

MODULE

MXM120, MXM130, MXM140, MXM155

1шт.

Small Control Module for Visctronic Fan

1шт.

10

87356940

ECU

2WD, MXM120, MXM130, MXM140, MXM155

1шт.

XCM - W/Semi Power Shift (30 KPH), EDC, FSA, PTO and Visctronic Fan

1шт.

10

87356939

ECU

4WD, MXM120, MXM130, MXM140, MXM155

1шт.

XCM - W/Semi Power Shift (40 KPH), EDC, FSA, PTO and Visctronic Fan

1шт.

10

87304731

ECU

MXM175, MXM190, Serial Range: -ACM283569

1шт.

Central Control Module (XCM1.5) for Engine, Suspension and Visctronic Fan

1шт.

10

87304732R

REMAN ELECT CONTROL

MXM175, MXM190

1шт.

10

87304732C

CONTROLLER

Return Number

1шт.

10

87384495

MODULE

MXM120, MXM130, MXM140

1шт.

10

87304732

ECU

MXM175, MXM190, Start Serial: ACM283570

1шт.

Central Control Module (XCM1.5) for Engine, Suspension and Visctronic Fan

1шт.

10

87304732R

REMAN ELECT CONTROL

MXM175, MXM190

1шт.

10

87304732C

CONTROLLER

Return Number

1шт.

11

15643904

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

3шт.
