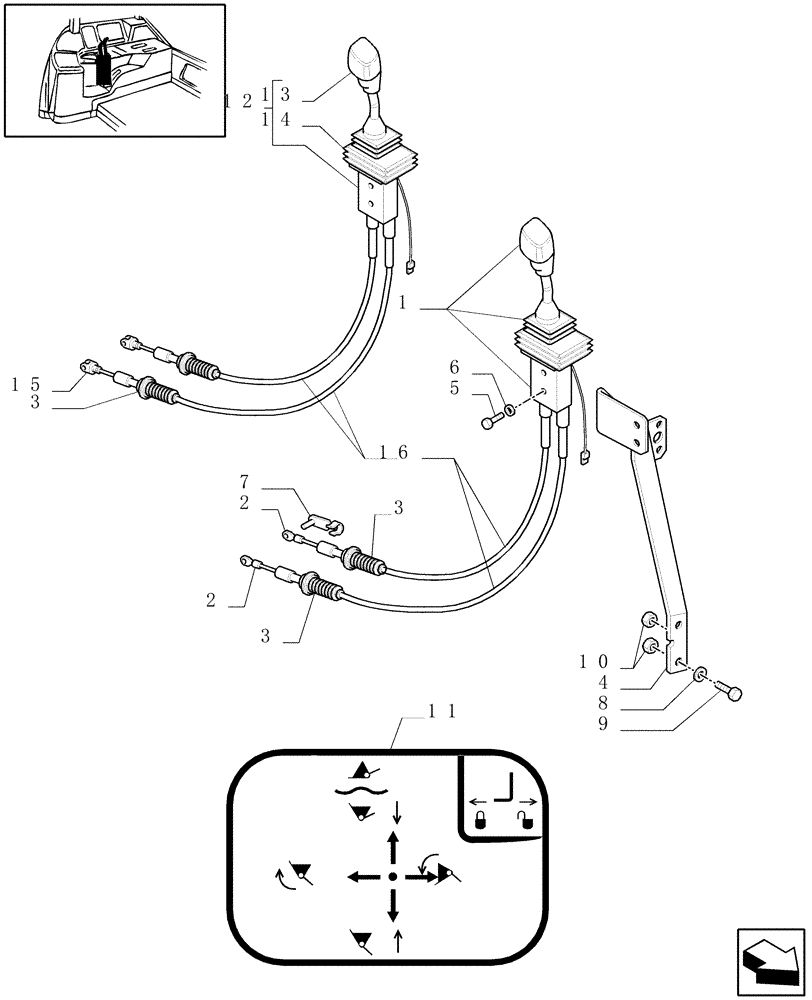

Запчасти Case IH MXM130 (1.96.2/03) - (VAR.440/1) VALVE CONTROL UNIT WITH JOYSTICK FOR LOADER W/HI-LO (10) - OPERATORS PLATFORM/CAB

1

82022178

JOYSTICK

Incl. 2, 3, Serial Range: -200704

1шт.

2

82019805

CLEVIS

, Serial Range: -200704

2шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

2шт.

4

82022498

BRACKET

1шт.

5

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

82022510

PIN,4.72mm OD x 15.5mm L

2шт.

8

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

4шт.

9

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 16

4шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

11

82025300

DECAL

Joystick Control

1шт.

12

82019806

JOYSTICK

Incl. 3, 13, 14, 15, Start Serial: 200705

1шт.

13

82020869

KNOB

, Start Serial: 200705

1шт.

14

82020870

BOOT

, Start Serial: 200705

1шт.

15

82019675

CLEVIS

, Start Serial: 200705

2шт.

16

82033062

CABLE

2шт.
