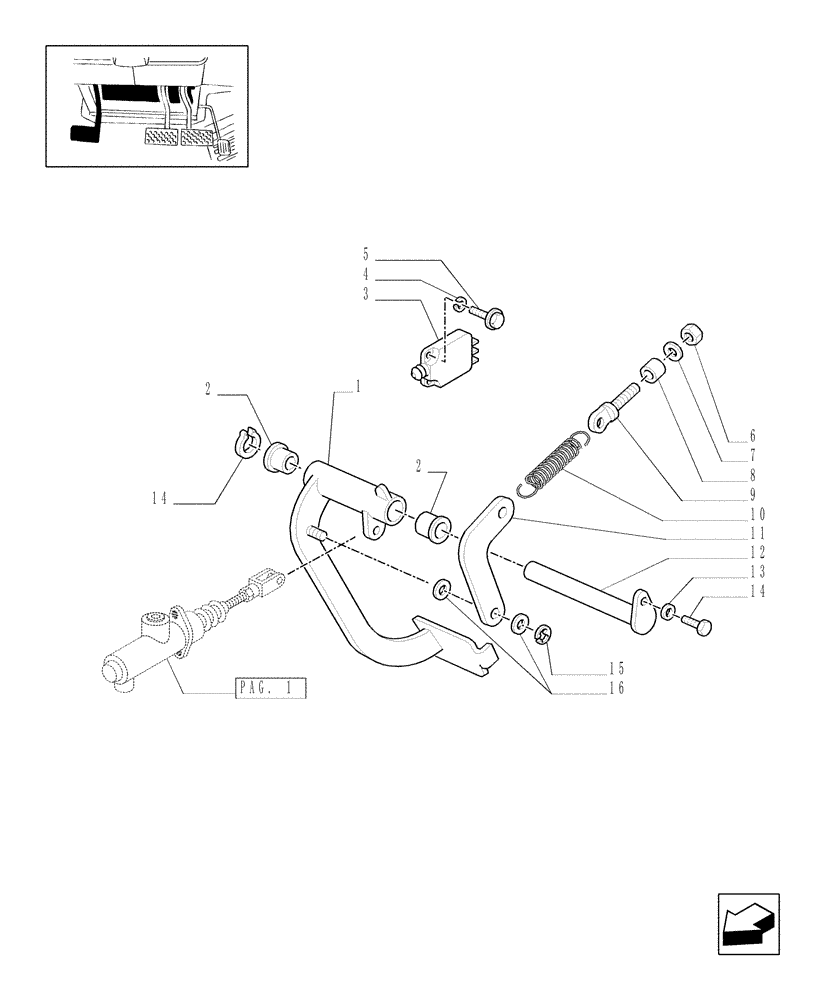

Запчасти Case IH MXM130 (1.95.2/01[01]) - 20X16 MECHANICAL GEAR BOX (40 KM/H) / CLUTCH CONTROL (10) - OPERATORS PLATFORM/CAB

1

82008073

PEDAL

Assy, Incl. 2, Serial Range: -ACM237800

1шт.

1

82038707

PEDAL ASSY.

Incl. 2, Start Serial: ACM237801

1шт.

2

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

, Serial Range: -ACM237800

2шт.

2

4983992

ROLLER BEARING,25mm ID x 32mm OD x 20mm W

, Start Serial: ACM237801

2шт.

3

82026949

PUSH BUTTON SWITCH

Brake

1шт.

4

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

5

83963569

CAPTIVE WASHER SCREW,Pan Hd, M4 x 12mm, Cl 4.8

2шт.

6

12164721

NUT,M10 x 1.25, Cl 10

1шт.

7

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10

1шт.

8

5120607

SPACER,10.5mm ID x 20mm OD x 12mm L

M10 x 20 x 12

1шт.

9

5121612

HOOK

1шт.

10

5113967

SPRING

1шт.

11

5155388

BRACKET

1шт.

12

82030041

PIN,25mm OD x 153mm L

1шт.

13

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

1шт.

14

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

15

11066076

SNAP RING,M12, Ext

1шт.

16

5118452

WASHER,12.5mm ID x 22mm OD x 2.3mm Thk

2шт.

17

87790533

SNAP RING

1шт.
