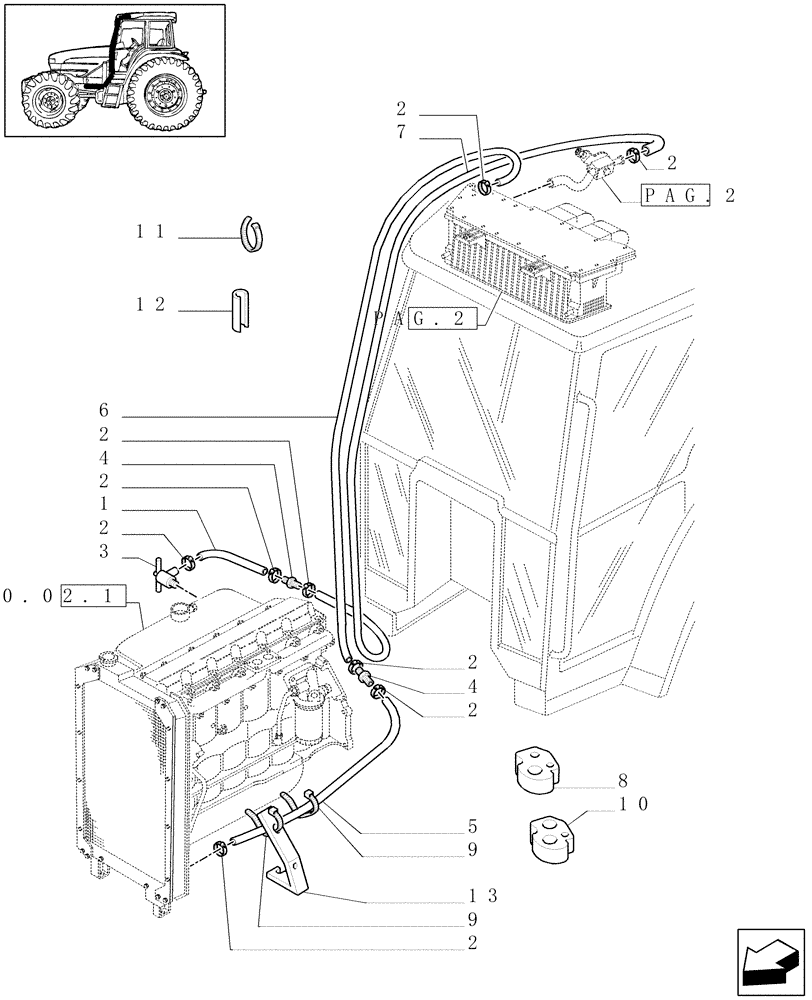

Запчасти Case IH MXM130 (1.94.2[01]) - HEATER LINES (10) - OPERATORS PLATFORM/CAB

1

82020608

HEATER HOSE,15.25 mm ID, 830.00 mm

HEATER HOSE, 15.25 mm ID, 830.00 mm

1шт.

2

82019905

HOSE CLAMP,22 - 26mm X 12mm

8шт.

3

83961305

VALVE

1шт.

4

82033471

HYD CONNECTOR,12mm D x 13.5mm D x 76mm L

3шт.

5

82036149

FLEXIBLE HOSE,15.25 mm ID x 2415.00 mm

1шт.

6

83994769

RADIATOR HOSE,15.25 mm ID

Heater to Radiator, Serial Range: -ACM269617

1шт.

6

87382947

HEATER HOSE,15.25 mm ID x 300.00 mm

Heater to Radiator, Start Serial: ACM269618

1шт.

7

82014535

HEATER HOSE,15.50 mm ID

Engine to Heater, Serial Range: -ACM269617

1шт.

7

87382945

HOSE

Engine to Heater, Start Serial: ACM269618

1шт.

8

82031690

FOAM INSULATION

W/Air Cond.

1шт.

9

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

10

82001902

FOAM INSULATION

W/Air Cond.

1шт.

11

81844383

CABLE TIE

CABLE STRAP

1шт.

12

82015330

BUMPER

1шт.

13

82027305

BRACKET

1шт.
