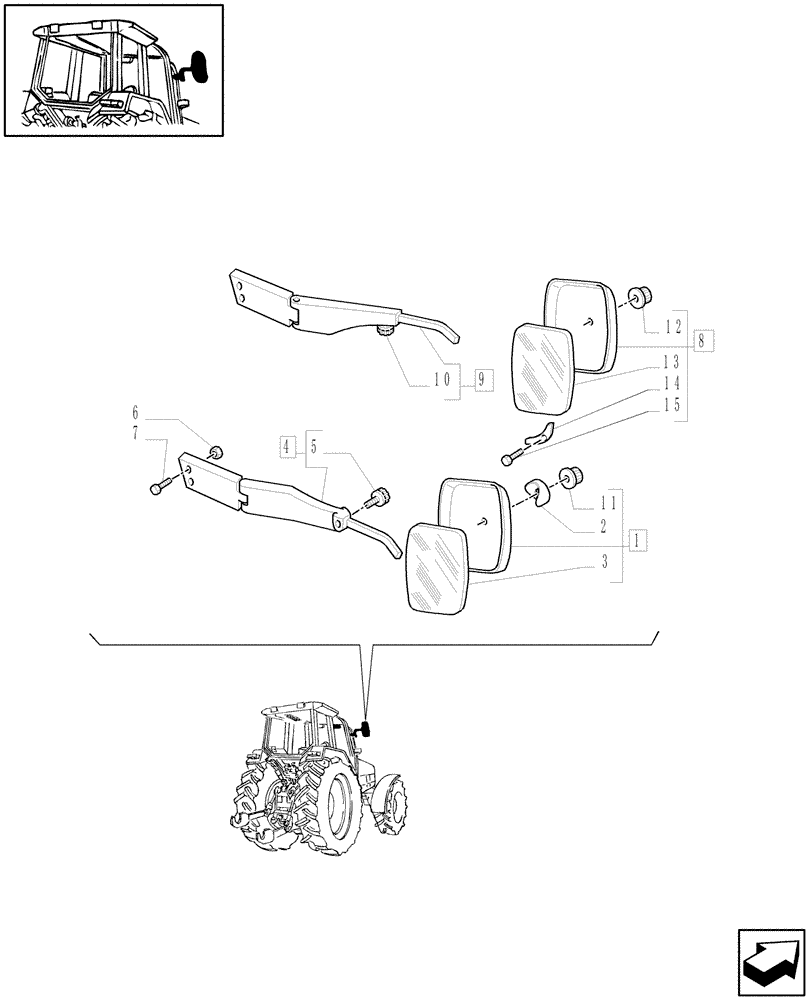

Запчасти Case IH MXM130 (1.93.6/01) - (VAR.879) TELESCOPIC REAR VIEW MIRROR (10) - OPERATORS PLATFORM/CAB

1

82014587

REAR VIEW MIRROR

BRITAX # 02*5481, Serial Range: -C4878

2шт.

2

82035908

WASHER

2шт.

3

82015243

REPLACEMENT MIRROR

225 x 315, Serial Range: -C4878

2шт.

4

82029422

REAR VIEW MIRROR

RH, Serial Range: -C5239

1шт.

4

82014589

ARM

LH, Serial Range: -C5239

1шт.

5

82015245

KNOB

, Serial Range: -C5239

2шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

7

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

8

87339177

MIRROR ASSY.

, Start Serial: D4878

1шт.

9

87339173

ARM

LH, Start Serial: D5239

1шт.

9

87339174

ARM

RH, Start Serial: D5239

1шт.

10

87365131

KNOB

, Start Serial: D5239

1шт.

11

82016257

KNOB

, Serial Range: -C4878

2шт.

12

82016257

KNOB

, Start Serial: D5542

2шт.

13

82035218

MIRROR,300mm x 200mm

, Start Serial: D5542

2шт.

14

87531094

BRACKET

4шт.

15

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.
