Запчасти Case IH MXM130 (1.93.3/ H[01]) - (VAR.319) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION IN RED LEATHER - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

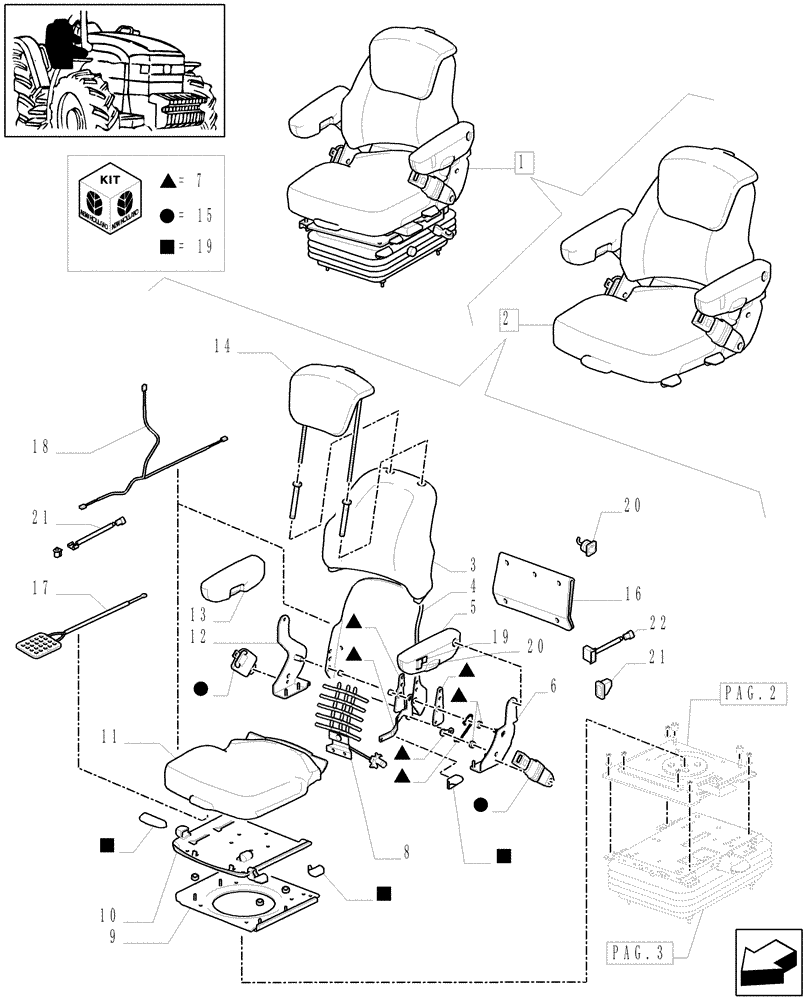

Схема запчастей Case IH MXM130 - (1.93.3/ H[01]) - (VAR.319) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION IN RED LEATHER - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
19
21
16
14
18
6
10
15
19
9
12
15
22
19
7
7
7
17
20
21
4
2
7
5
15
8
pag.3
3
1
7
13
7
pag.2
7
20
19
19
11

Артикул

Название

Примечание

Количество

1

87363498

DRIVER SEAT

Assy

1шт.

W/Red leather

1шт.

2

87515366

DRIVER SEAT

Assy

1шт.

W/Red leather

1шт.

3

87308616

BACKREST

1шт.

W/Red leather

1шт.

4

87367813

SERVICE KIT

Back Pan

1шт.

5

82030801

ARMREST

LH

1шт.

6

82020804

BRACKET

LH Armrest

1шт.

7

82020808

KIT

Recliner

1шт.

8

87367816

KIT

Lumbar

1шт.

9

82020836

KIT

Seat Pan

1шт.

10

82020828

KIT

Cushion Extension

1шт.

11

87308617

SEAT CUSHION

1шт.

W/Red leather

1шт.

12

82020806

BRACKET

RH Armrest

1шт.

13

82020807

ARMREST

RH

1шт.

14

87308623

SEAT HEADREST

Upper

1шт.

W/Redleather, Include two plastic tubes

1шт.

15

82020831

KIT

Seat Belt

1шт.

16

82030777

BRIEF CASE

1шт.

17

87308594

SERVICE KIT

Operator Presence

1шт.

18

87367527

WIRE HARNESS

1шт.

19

87308611

SERVICE KIT

1шт.

20

87308609

PREHEATING SWITCH

Heater

1шт.

21

87308605

SWITCH

Height Control

1шт.

Выбрано товаров: 26
