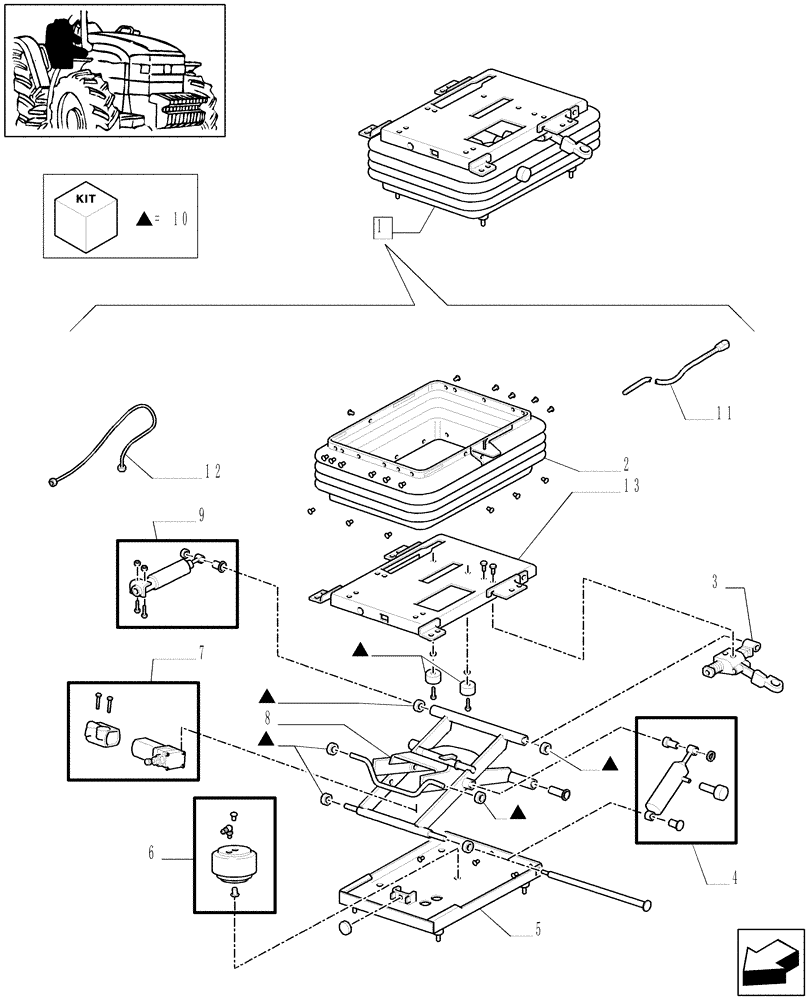

Запчасти Case IH MXM130 (1.93.3/ C[03]) - (VAR.964) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

82020841

SUSPENSION

Suspension Assy

1шт.

2

82020843

KIT

Suspension Boot

1шт.

87347976

SERVICE KIT

Suspension Boot Clips

1шт.

3

82021020

SERVICE KIT

Fore/Aft Isolator

1шт.

4

82020847

KIT

Suspension Shock Absorber

1шт.

5

82020821

KIT

Lower Housing

1шт.

6

82020819

KIT

Air Spring

1шт.

7

82030804

KIT

Compressor

1шт.

8

82020846

KIT

Suspension Scissors

1шт.

9

82020830

SERVICE KIT

Suspension Fore/Aft Damper

1шт.

10

82020845

SERVICE KIT

Bumper and Roller

1шт.

11

82030805

KIT

1шт.

12

82030806

SERVICE KIT

Air Line

1шт.

13

82020844

KIT

Upper Housing

1шт.
