Запчасти Case IH MXM130 (1.93.3/ C[01]) - (VAR.964) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

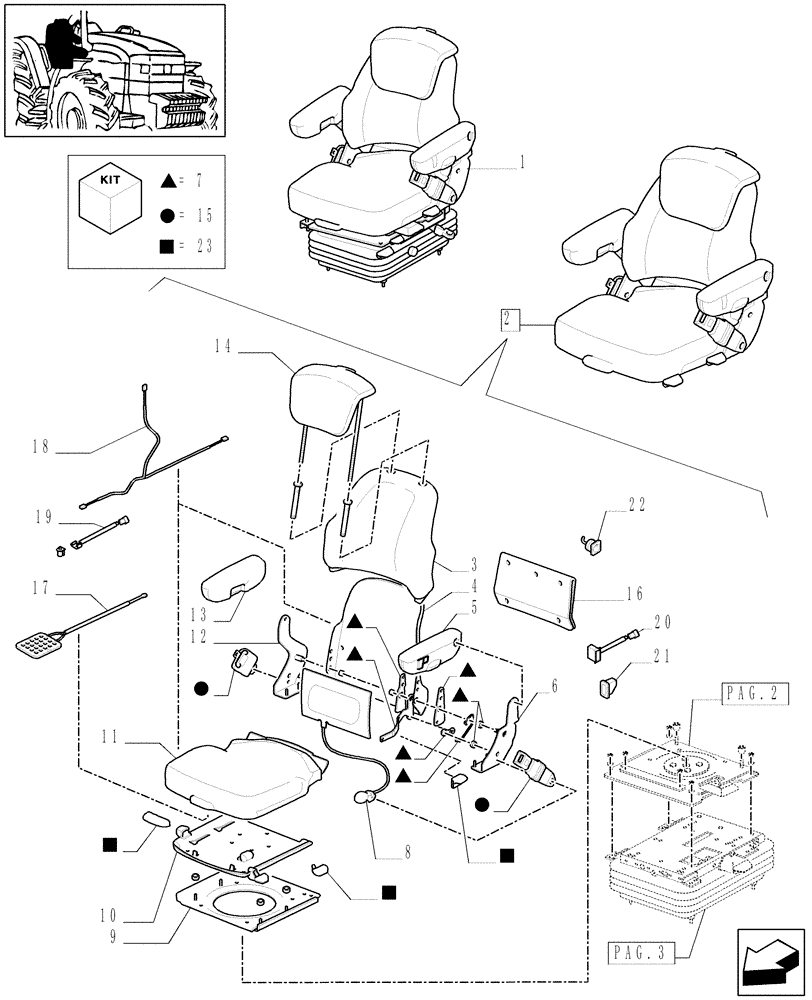

Схема запчастей Case IH MXM130 - (1.93.3/ C[01]) - (VAR.964) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
19
21
15
10
9
15
23
23
7
2
5
18
14
7
7
1
23
6
23
7
11
15
22
3
7
7
17
16
8
12
13
pag.3
pag.2
4
7
20

Артикул

Название

Примечание

Количество

1

82023883

DRIVER SEAT

Assy

1шт.

2

82030826

DRIVER SEAT

Assy

1шт.

3

82036256

BACKREST

Heated

1шт.

4

82020834

KIT

Back Pan

1шт.

5

82030801

ARMREST

LH, Heated

1шт.

6

82020804

BRACKET

LH Armrest

1шт.

7

82020808

KIT

Recliner

1шт.

8

82030802

SERVICE KIT

Lumbar

1шт.

9

82020836

KIT

Seat Pan

1шт.

10

82020828

KIT

Cushion Extension

1шт.

11

82030827

SEAT CUSHION

Heated, Serial Range: -C5141

1шт.

11

87308599

SEAT CUSHION

Heated, Start Serial: D5141

1шт.

12

82020806

BRACKET

RH Armrest

1шт.

13

82020807

ARMREST

RH

1шт.

14

82030825

SEAT HEADREST

Upper

1шт.

15

82020831

KIT

Seat Belt

1шт.

16

82030777

BRIEF CASE

1шт.

17

82020813

KIT

Operator Presence Switch, Serial Range: -C5141

1шт.

18

82030807

WIRE HARNESS

1шт.

19

87308594

SERVICE KIT

Operator Presence, Start Serial: D5141

1шт.

20

87308603

SWITCH

Height Control, Serial Range: -C5141

1шт.

21

87308605

SWITCH

Height Control, Start Serial: D5141

1шт.

22

87308609

PREHEATING SWITCH

Heater

1шт.

23

87308611

SERVICE KIT

1шт.

Выбрано товаров: 24
